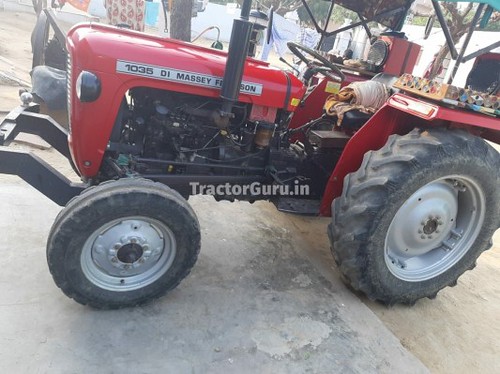

Massey Ferguson 1035

Production: 1986 - 1991

Production
Distributor:	Massey Ferguson
Manufacturer:	Toyosha
Type:	Compact Utility tractor
Original price:	$12,400 (1991)

Massey Ferguson 1035 Power
Engine:	31 hp 23.1 kW
PTO (claimed):	26 hp 19.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Two-post ROPS.
Transmission:	12-speed gear

Hydraulics
Type:	open center
Pump flow:	6 gpm 22.7 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2227 lbs 1010 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540 (1.375)

1035 Serial Numbers
Location:	Clutch housing, left side.
1986:	00100 (2WD)
1987:	00315 (2WD)
1988:	-----
1989:	00540 (2WD)
1990:	00585 (2WD)
1991:	00729 (2WD)
1992:	00872 (2WD)
1986:	40100 (4WD)
1987:	40377 (4WD)
1988:	40691 (4WD)
1989:	40936 (4WD)
1990:	41058 (4WD)
1991:	41223 (4WD)
1992:	41388 (4WD)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Toyosha MS150
diesel
3-cylinder
liquid-cooled
Displacement:	91.8 ci 1.5 L
Bore/Stroke:	3.228x3.740 inches 82 x 95 mm
Power:	31 hp 23.1 kW
Fuel system:	indirect injection
Air cleaner:	dry
Compression:	23:1
Rated RPM:	2600
Firing order:	1-3-2
Starter volts:	12
Oil capacity:	3.7 qts 3.5 L
Coolant capacity:	4.2 qts 4.0 L

Transmission
Type:	gear
Gears:	12 forward and 4 reverse
Clutch:	215mm dry disc
Oil capacity:	29.6 qts 28.0 L

Dimensions
Wheelbase:	67.3 inches 170 cm
Length:	116.9 inches 296 cm
Width:	59.3 inches 150 cm
Height (steering wheel):	60.8 inches 154 cm
Shiping weight:	2711 lbs 1229 kg (2WD)
2935 lbs 1331 kg (4WD)
