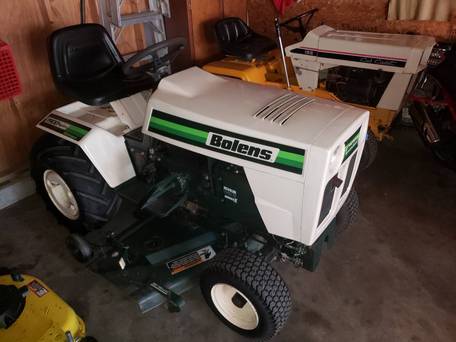

Bolens 1900 1966

Production: 1983 - 1985

Production
Manufacturer:	Bolens
Type:	Garden tractor

Mechanical
Steering:	manual
Brakes:	disc
Cab:	Open operator station. Soft-side cab optional.
Transmission:	hydrostatic

Tractor hitch
Rear Type:	0 (optional)

Power Take-off (PTO)
Rear PTO:	independent (optional)
Rear RPM:	2000
Mid PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Kohler KT19QS
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement:	770 cc 47 ci
Bore/Stroke:	3.125x3.0625 inches 79 x 78 mm
Power (gross):	19 hp 14.2 kW
Air cleaner:	paper element (Kohler 4508302) with pre-cleaner (Kohler 5208302)
Rated RPM:	3600
Starter:	electric
Starter volts:	12
Sparkplug:	Chamption RBL15Y
Sparkplug gap:	0.025 inches 0.635 mm
Point gap:	0.020 inches 0.508 mm

Transmission
Transmission:	Eaton 11
Type:	shaft-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	10 qts 9.5 L

Dimensions
Wheelbase:	48.5 inches 123 cm
Length:	70.5 inches 179 cm
Width:	30.25 inches 76 cm
Height:	45 inches 114 cm
Shipping:	850 lbs 385 kg
Ground clearance:	7.5 inches 19 cm
