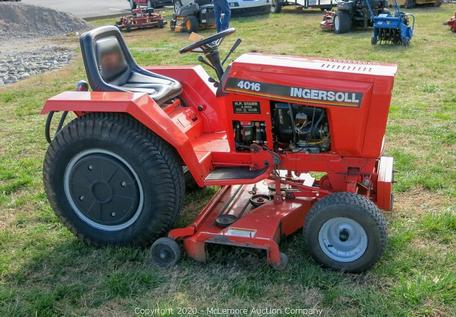

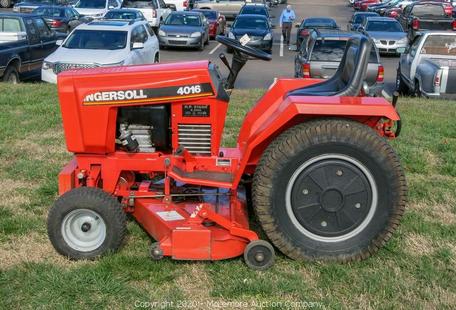

Ingersoll 4016
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Ingersoll |
| Type | Garden tractor |
| Factory | Winneconne, Wisconsin, USA |
4016 Serial Numbers | |
| Location: | Serial number on the left side of the tractor frame, above the footrest. |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 20 |
| Charging volts | 12 |
| Battery CCA | 300 |
| Battery volts | 12 |
Engine Detail | |
| Onan P216 | |
| gasoline | |
| 2-cylinder | |
| air-cooled horizontal-shaft horizontally-opposed | |
| The Onan P216 was the original engine in the Ingersoll 4016, used through 1992. | |
| Displacement | 709 cc 43.3 ci |
| Bore/Stroke | 3.25x2.875 inches 83 x 73 mm |
| Power (gross) | 16 hp 11.9 kW |
| Compression | 6.5:1 |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Champion RS14YC |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.005 inches (cold) 0.127 mm |
| Exhaust valve clearance | 0.013 inches (cold) 0.330 mm |
Transmission | |
| Transmission | Hy-drive |
| Gears | infinite forward and reverse (2-range) |
Dimensions | |
| Wheelbase | 48 inches 121 cm |
| Length | 72 inches 182 cm |
| Width | 41 inches 104 cm |
| Height (steering wheel) | 43.5 inches 110 cm |
| Height (hood) | 38.5 inches 97 cm |
| Weight | 765 lbs 347 kg |
| Clearance (rear axle) | 11 inches 27 cm |
| Front tread | 33.5 inches 85 cm |
| Rear tread | 31.5 inches 80 cm |
