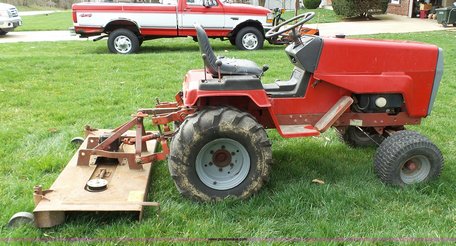

Massey Ferguson 1855
Type: Garden Tractors
Contents:
Production | |
| Distributor | Massey Ferguson |
| Manufacturer | Snapper |
| Type | Garden tractor |
| Factory | Fort Worth, Texas, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | disc |
| Cab | Open operator station. |
Tractor hitch | |
| Rear Type | 0 OptOptional |
| Rear lift (at ends) | 650 lbs 294 kg |
Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear RPM | 2000 |
1855 Serial Numbers | |
| 1977 | 200001 |
| 1978 | 200500 |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Onan B48M | |
| gasoline | |
| 2-cylinder | |
| air-cooled horizontal-shaft opposed twin | |
| Displacement | 781 cc 47.7 ci |
| Bore/Stroke | 3.25x2.875 inches 83 x 73 mm |
| Power (gross) | 18 hp 13.4 kW |
| Compression | 6.7:1 |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.021 inches 0.533 mm |
| Intake valve clearance | 0.005 inches (cold) 0.127 mm |
| Exhaust valve clearance | 0.013 inches (cold) 0.330 mm |
Transmission | |
| Transmission | Sundstrand HT 90 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse (2-range) |
| Oil capacity | 5 qts 4.7 L |
Dimensions | |
| Wheelbase | 52 inches 132 cm |
| Length | 78 inches 198 cm |
| Width | 45.5 inches 115 cm |
| Height (steering wheel) | 48 inches 121 cm |
| 1855 Weight | 860 lbs 390 kg |
| 1855A Weight | 950 lbs 430 kg |
| Ground clearance | 16 inches 40 cm |
| Front tread | 32 inches 81 cm |
| Rear tread | 33.5 inches 85 cm |
