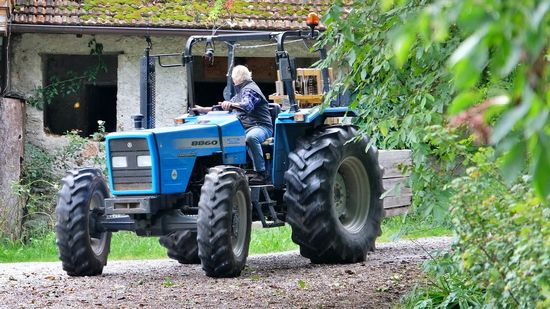

Landini 8860

Production: 1988 - 2000

Production
Manufacturer:	Landini
Type:	Utility tractor

Variants
8860:	ROPS
8870:	Cabin

Landini 8860 Power
Engine:	83.6 hp 62.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Four-post ROPS.
Transmission:	12-speed mechanical shuttle

Hydraulics
Pump flow:	9.4 gpm 35.6 lpm

Tractor hitch
Rear lift:	5732 lbs 2600 kg

Power Take-off (PTO)
Rear RPM:	540/750

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins A4.248
diesel
4-cylinder
liquid-cooled
Displacement:	248 ci 4.1 L
Bore/Stroke:	3.975x5.00 inches 101 x 127 mm
Power:	80 hp 59.7 kW
Rated RPM:	2200
Torque:	210.2 lb-ft 285.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Type:	mechanical shuttle
Gears:	12 forward and reverse

Dimensions
2WD Wheelbase:	92.1 inches 233 cm
4WD Wheelbase:	91.2 inches 231 cm
Length:	150 inches 381 cm
Width:	73.6 inches 186 cm
Height (steering wheel):	67.7 inches 171 cm
Height (ROPS):	102 inches 259 cm
Weight:	6950 lbs 3152 kg
