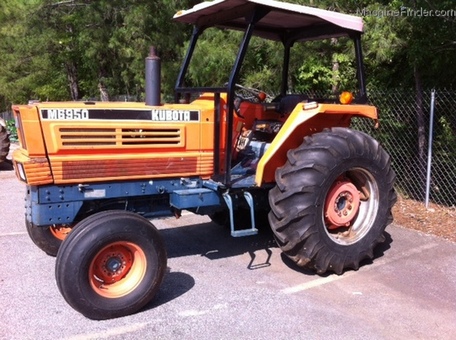

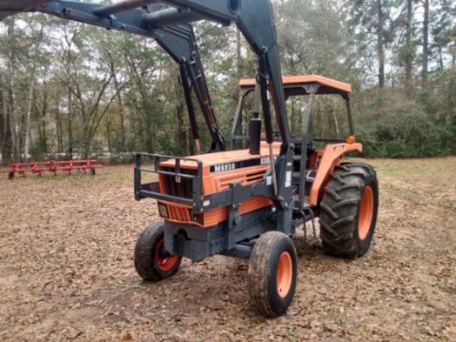

Kubota M6950

Production: 1983 - 1993

Production
Manufacturer:	Kubota
Type:	Utility tractor
Factory:	Japan

Variants
M6950F:	2WD
M6950DT:	4WD

Kubota M6950 Power
Engine (net):	71 hp 52.9 kW
PTO (claimed):	66 hp 49.2 kW
Drawbar (tested):	55.16 hp 41.1 kW
PTO (tested):	66.44 hp 49.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD optional
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Four-post ROPS. Cab optional with air-conditioning.
Transmission:	12-speed synchronized

Capacity
Fuel:	26.4 gal 99.9 L
Hydraulic system:	13.2 gal 50.0 L

Hydraulics
Type:	open center
Capacity:	13.2 gal 50.0 L
Valves:	1 or 2
Total flow:	11 gpm 41.6 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	4,848 lbs 2199 kg
Rear lift (at 24"/610mm):	4,686 lbs 2125 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	65 (with cab)
Battery volts:	12
Battery AH:	300

Engine Detail
Kubota V4300-2A
diesel
4-cylinder
liquid-cooled
Displacement:	243.1 ci 4.0 L
Bore/Stroke:	4.13x4.53 inches 105 x 115 mm
Air cleaner:	single paper element
Compression:	17:1
Rated RPM:	2400
Starter volts:	12
Oil capacity:	13.9 qts 13.2 L
Coolant capacity:	14.4 qts 13.6 L

Transmission
Type:	synchronized
Gears:	12 forward and 4 reverse
Clutch:	single dry plate
Oil capacity:	52.8 qts 50.0 L
Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.

Dimensions
Wheelbase:	87.6 inches 222 cm
Length:	152.8 inches 388 cm
Width:	78.2 inches 198 cm
Height (exhaust):	93.9 inches 238 cm (2WD)
94.9 inches 241 cm (4WD)
Clearance (front axle):	21.1 inches 53 cm (2WD)
15.1 inches 38 cm (4WD)
Front tread:	55.9 to 79.5 inches 141 to 201 cm (2WD)
Front tread:	60.6 to 68.5 inches 153 to 173 cm (4WD)
Rear tread:	59.8 to 79.5 inches 151 to 201 cm
