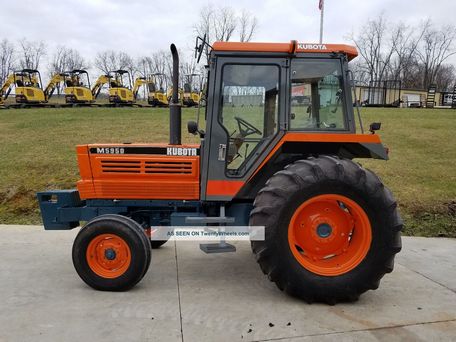

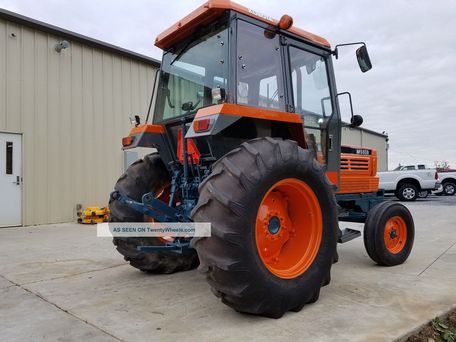

Kubota M5950

Production: 1983 - 1993

Production
Manufacturer:	Kubota
Type:	Utility tractor
Factory:	Japan

Variants
M5950F:	2WD
M5950DT:	4WD

Kubota M5950 Power
Engine (net):	61 hp 45.5 kW
PTO (claimed):	57 hp 42.5 kW
Drawbar (tested):	47.51 hp 35.4 kW
PTO (tested):	58.00 hp 43.3 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD optional
Steering:	hydrostatic power
Brakes:	differential mechanical wet disc
Cab:	Four-post ROPS. Cab optional with air-conditioning.
Transmission:	12-speed synchronized

Capacity
Fuel:	18.5 gal 70.0 L
Hydraulic system:	12.7 gal 48.1 L

Hydraulics
Type:	open center
Capacity:	12.7 gal 48.1 L
Pressure:	2630 psi 181.3 bar
Valves:	1 or 2
Total flow:	9.3 gpm 35.2 lpm

Tractor hitch
Rear Type:	I/II
Rear lift (at ends):	3,968 lbs 1799 kg
Rear lift (at 24"/610mm):	3,307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	65 (with cab)
Battery volts:	12
Battery AH:	300

Engine Detail
Kubota D3200-A
diesel
3-cylinder
liquid-cooled
Displacement:	196.4 ci 3.2 L
Bore/Stroke:	4.29x4.53 inches 109 x 115 mm
Air cleaner:	dry dual stage
Compression:	17:1
Rated RPM:	2400
Starter volts:	12
Oil capacity:	10.4 qts 9.8 L
Coolant capacity:	12.3 qts 11.6 L

Transmission
Type:	synchronized
Gears:	12 forward and 4 reverse
Clutch:	dry dual 11.2-inch plate
Oil capacity:	50.8 qts 48.1 L
Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.

Dimensions
Wheelbase:	82.7 inches 210 cm (2WD)
83.3 inches 211 cm (4WD)
Length:	144.3 inches 366 cm
Width:	72.9 inches 185 cm
Shiping weight:	4,989 lbs 2263 kg (2WD)
5,673 lbs 2573 kg (4WD)
Clearance (front axle):	18.3 inches 46 cm (2WD)
14.6 inches 37 cm (4WD)
Front tread:	55.9 to 79.5 inches 141 to 201 cm (2WD)
Front tread:	55.9 to 63.8 inches 141 to 162 cm 4WD)
Rear tread:	55.9 to 79.5 inches 141 to 201 cm
