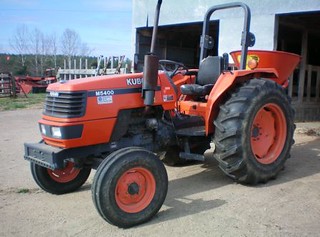

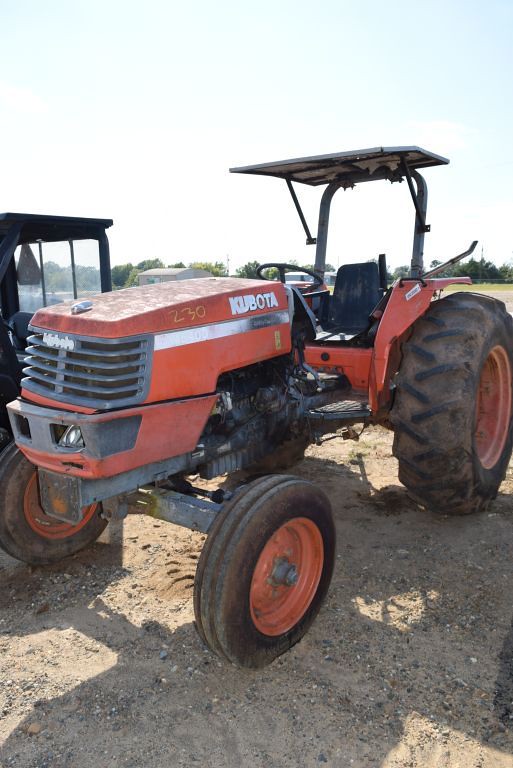

Kubota M5400

Production: 1995 - 1999

Production
Manufacturer:	Kubota
Type:	Utility tractor

Variants
M5400DT-N:	narrow profile

Kubota M5400 Power
Engine (gross):	58 hp 43.3 kW
Engine (net):	54 hp 40.3 kW
PTO (claimed):	50 hp 37.3 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS
Transmissions:	8-speed partially synchronized
12-speed creeper

Hydraulics
Type:	open center
Valves:	1
Pump flow:	11 gpm 41.6 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift (at ends):	4200 lbs 1905 kg
Rear lift (at 24"/610mm):	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2295

Electrical
Ground:	negative
Battery CCA:	615
Battery volts:	12

Engine Detail
Kubota F2803
diesel
5-cylinder
liquid-cooled
Displacement:	167.6 ci 2.7 L
Bore/Stroke:	3.43x3.64 inches 87 x 92 mm
Power (gross):	58 hp 43.3 kW
Rated RPM:	2700
Torque:	129 lb-ft 174.9 Nm
Torque RPM:	1600
Starter volts:	12
Coolant capacity:	8.5 qts 8.0 L

Dimensions
Wheelbase:	78.7 inches 199 cm
Length:	137.6 inches 349 cm
DT-N Length:	134.3 inches 341 cm
Width:	72.8 inches 184 cm
DT-N Width:	48 inches 121 cm
Height (ROPS):	94 inches 238 cm
2WD Weight:	3858 lbs 1749 kg
4WD Weight:	4078 lbs 1849 kg
Ground clearance:	18.1 inches 45 cm
DT-N Ground clearance:	14 inches 35 cm
