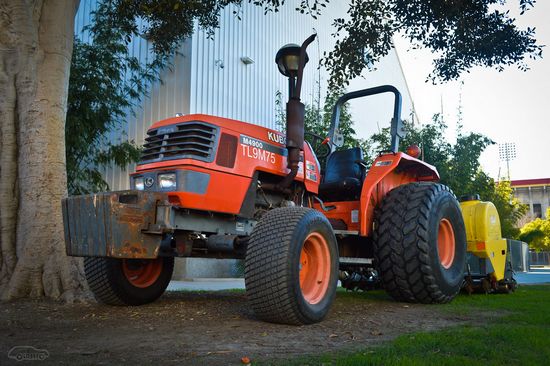

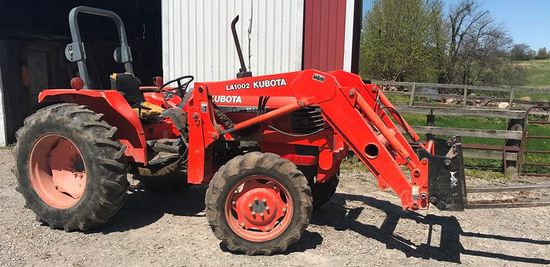

Kubota M4900
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Utility tractor |
Kubota M4900 Power | |
| Engine (gross): | 54 hp 40.3 kW |
| Engine (net): | 49.5 hp 36.9 kW |
| PTO (claimed): | 45 hp 33.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | mechanical wet disc |
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning. |
| Transmissions: | 8-speed |
| 8-speed synchronized shuttle | |
| 12-speed | |
Hydraulics | |
| Type: | open center |
| Valves: | 1 to 3 |
| Total flow: | 17.1 gpm 64.7 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | position control and top-link draft sensing |
| Rear lift (at ends): | 4200 lbs 1905 kg |
| Rear lift (at 24"/610mm): | 3310 lbs 1501 kg |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| ROPS Charging amps: | 45 |
| Cab Charging amps: | 60 |
| Battery CCA: | 700 |
| Battery volts: | 12 |
Engine Detail | |
| Kubota F2803 | |
| diesel | |
| 5-cylinder | |
| liquid-cooled | |
| Displacement: | 167.6 ci 2.7 L |
| Bore/Stroke: | 3.43x3.64 inches 87 x 92 mm |
| Power (gross): | 54 hp 40.3 kW |
| Air cleaner: | dual dry elements |
| Rated RPM: | 2600 |
| Starter volts: | 12 |
| Oil capacity: | 8.5 qts 8.0 L |
| Coolant capacity: | 6.6 qts 6.2 L |
Dimensions | |
| ROPS Wheelbase: | 78.7 inches 199 cm |
| Cab Wheelbase: | 81.7 inches 207 cm |
| 2WD ROPS Length: | 137.6 inches 349 cm |
| 4WD ROPS Length: | 134.1 inches 340 cm |
| 2WD Cab Length: | 140.6 inches 357 cm |
| 4WD Cab Length: | 137 inches 347 cm |
| Width: | 67.2 inches 170 cm *Minimum |
| Height (ROPS): | 92.5 inches 234 cm |
| Height (cab): | 97.8 inches 248 cm |
| Clearance (front axle): | 16.9 inches 42 cm |
| 2WD Front tread: | 55.9 to 71.7 inches 141 to 182 cm |
| 4WD Front tread: | 52.3 to 56.3 inches 132 to 143 cm |
| Rear tread: | 51.9 to 67.7 inches 131 to 171 cm |
