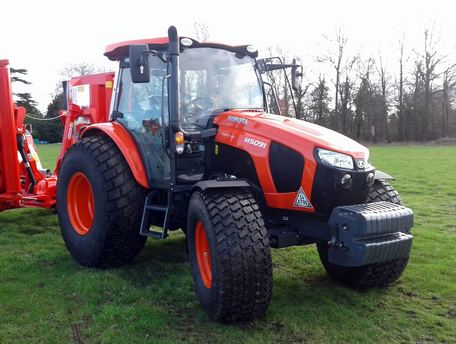

Kubota M5091N

Production: 2018

Production
Manufacturer:	Kubota
Type:	Orchard/Vineyard tractor

Kubota M5091N Power
Engine (gross):	92 hp 68.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post mid-mount folding ROPS. Cab optional.
Transmissions:	18-speed
36-speed

Hydraulics
Valves:	2 to 5
ROPS Pump flow:	16.6 gpm 62.8 lpm
Cab Pump flow:	18.2 gpm 68.9 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at ends):	5071 lbs 2300 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E
1000*Optional

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Kubota V3800
diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
ROPS Rated Power (EC 97/98):	92 hp 68.6 kW
Cab Rated Power (EC 97/98):	93 hp 69.4 kW
ROPS Rated RPM:	2400
Cab Rated RPM:	2600
Torque:	216 lb-ft 292.9 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	83.9 inches 213 cm
Length:	155.5 inches 394 cm
Width:	49.2 inches 124 cm *Minimum width
Height (steering wheel):	55.7 inches 141 cm
Height (cab):	92.9 inches 235 cm
ROPS Weight:	5512 lbs 2500 kg
Cab Weight:	5952 lbs 2699 kg
Front tread:	40.8 to 52.3 inches 103 to 132 cm
Rear tread:	36.9 to 57.8 inches 93 to 146 cm
