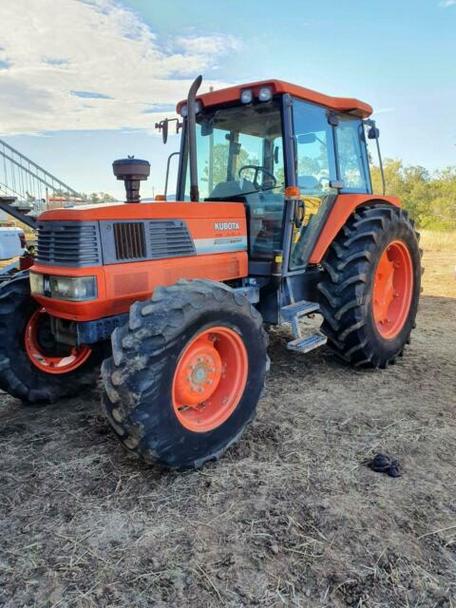

Kubota M120
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Utility tractor |
| During official testing, the Kubota M120DT failed to meet claimed hydraulic flow and three-point lift, with the basic hitch lifting 3,280 pounds (instead of 5,200). | |
Variants | |
| M120DT: | 4WD |
Kubota M120 Power | |
| Engine: | 120 hp 89.5 kW |
| PTO (claimed): | 98 hp 73.1 kW |
| Drawbar (tested): | 89.3 hp 66.6 kW |
| PTO (tested): | 103.1 hp 76.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | power |
| Brakes: | differential hydraulic wet discs |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 16-speed eight-speed power shift |
| 24-speed creeper | |
Capacity | |
| Fuel: | 52.8 gal 199.8 L |
| Hydraulic system: | 15.25 gal 57.7 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 15.25 gal 57.7 L |
| Valves: | 2 |
| Pump flow: | 20.6 gpm 78.0 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 5,200 lbs 2358 kg |
| 6,570 lbs 2980 kg (external cylinder) | |
| 7,940 lbs 3601 kg (dual cylinder) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Kubota | |
| turbocharged diesel | |
| 5-cylinder | |
| liquid-cooled | |
| Displacement: | 356 ci 5.8 L |
| Bore/Stroke: | 4.291x4.922 inches 109 x 125 mm |
| Power: | 120 hp 89.5 kW |
| Fuel system: | direct injection |
| Air cleaner: | dual paper elements |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
| Coolant capacity: | 14.4 qts 13.6 L |
