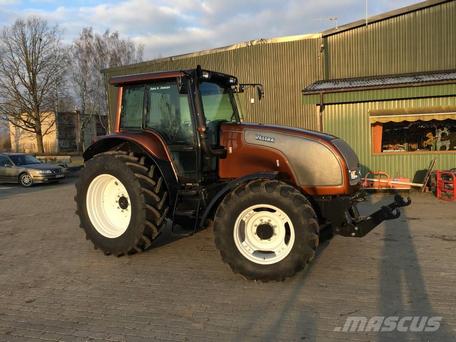

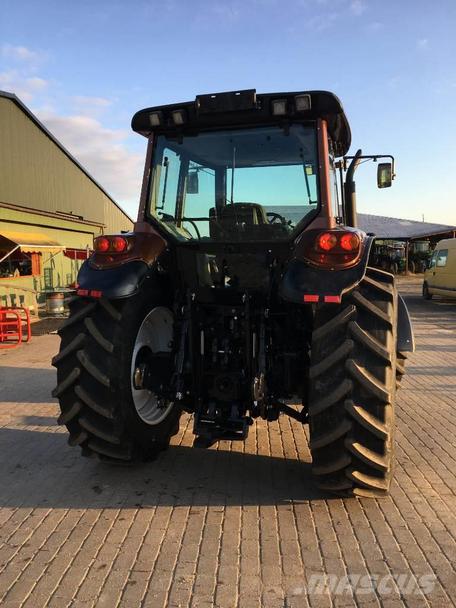

Valtra M120

Production: 2003 - 2006

Production
Manufacturer:	Valtra
Type:	Row-Crop tractor

Valtra M120 Power
Engine:	120 hp 89.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	36-speed partial power shift

Hydraulics
Type:	load sensing
Pressure:	2843 psi 196.0 bar
Total flow:	24.0 gpm 90.8 lpm

Tractor hitch
Rear Type:	III/II
Rear lift:	15,876 lbs 7201 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@1874 1000@2000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12
Battery AH:	160

Engine Detail
SisuDiesel 44EWA
intercooled turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.4 ci 4.4 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	120 hp 89.5 kW
Rated RPM:	2200
Torque:	368.8 lb-ft 500.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Transmission:	HiTech
Type:	partial power shift
Gears:	36 forward and reverse
Clutch:	wet disc
Twelve gears with three-speed power shift.

Dimensions
Wheelbase:	100.8 inches 256 cm
Length:	192.9 inches 489 cm
Width:	92.1 inches 233 cm
Height:	116.9 inches 296 cm
Weight:	11312 lbs 5131 kg
Clearance (front axle):	20.9 inches 53 cm
Clearance (rear axle):	21.1 inches 53 cm
