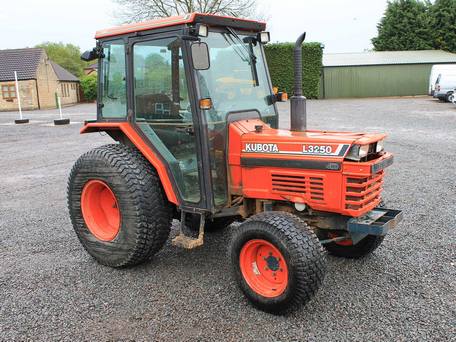

Kubota L3250

Production: 1989 - 1990

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
L3250F:	2WD
L3250DT:	4WD

Kubota L3250 Power
Engine (gross):	40 hp 29.8 kW
PTO (claimed):	32 hp 23.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS.
Transmission:	8-speed mechanical shuttle

Hydraulics
Type:	open center
Pump flow:	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type:	I
Rear lift:	1875 lbs 850 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota V1902
diesel
4-cylinder
liquid-cooled
Displacement:	113.6 ci 1.9 L
Bore/Stroke:	3.3x3.2 inches 84 x 81 mm
Power (gross):	40 hp 29.8 kW
Fuel system:	direct injection
Rated RPM:	2600
Starter volts:	12
Coolant capacity:	7.4 qts 7.0 L

Transmission
Type:	mechanical shuttle
Gears:	8 forward and 7 reverse

Dimensions
Wheelbase:	68.3 inches 173 cm
Length:	114.2 inches 290 cm
Width:	56.1 inches 142 cm
Height:	80.7 inches 204 cm
Weight:	2750 lbs 1247 kg
