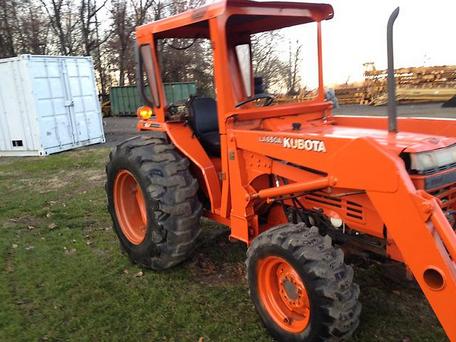

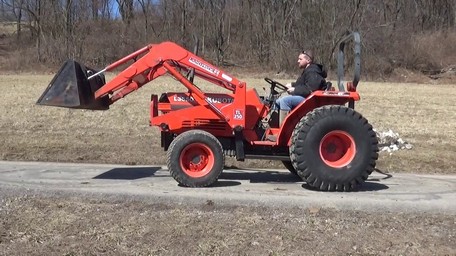

Kubota L3650

Production: 1990 - 1993

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota L3650 Power
Engine (gross):	40.5 hp 30.2 kW
PTO (claimed):	33 hp 24.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear lock
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Optional canopy.
Transmissions:	8-speed mechanical shuttle
8-speed

Capacity
Fuel:	7.7 gal 29.1 L
Hydraulic system:	7.5 gal 28.4 L

Hydraulics
Type:	open center
Capacity:	7.5 gal 28.4 L
Pressure:	2490 psi 171.7 bar
Pump flow:	8.2 gpm 31.0 lpm

Tractor hitch
Rear Type:	1
Control:	position control with optional draft control
Rear lift (at ends):	2,645 lbs 1199 kg
Rear lift (at 24"/610mm):	2,050 lbs 929 kg

Power Take-off (PTO)
Rear PTO:	transmssion
live*Optional
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery CCA:	447
Battery volts:	12

Engine Detail
Kubota V1902-DI-X-AE
diesel
4-cylinder
liquid-cooled
Displacement:	113.6 ci 1.9 L
Bore/Stroke:	3.35x3.23 inches 85 x 82 mm
Power (gross):	40.5 hp 30.2 kW
Fuel system:	direct injection
Rated RPM:	2600
Torque:	91.9 lb-ft 124.6 Nm
Starter volts:	12
Coolant capacity:	5.9 qts 5.6 L

Dimensions
Wheelbase:	68.3 inches 173 cm
Length:	116.1 inches 294 cm
Width:	58.3 inches 148 cm
Height (steering wheel):	59.4 inches 150 cm
Height (ROPS):	84.8 inches 215 cm
Ground clearance:	14.2 inches 36 cm
2WD Front tread:	45.3/49.2/53.1/57.1 inches 115/124/134/145 cm
4WD Front tread:	44.1 inches 112 cm
Rear tread:	45.5/48.2/52.2/53.1/57.1 inches 115/122/132/134/145 cm
