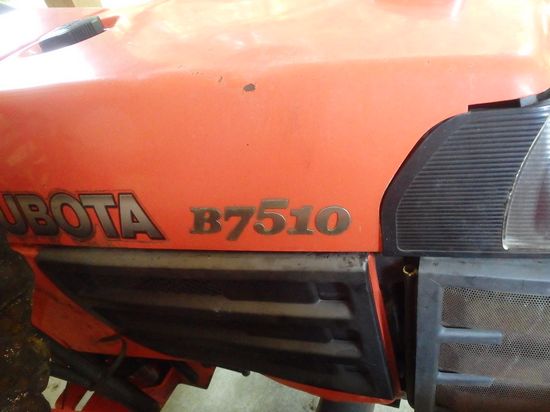

Kubota B7510

Production: 2004 - 2007

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
B7510DT:	gear
B7510DTN:	narrow
B7510HSD:	hydrostatic

Kubota B7510 Power
Engine (gross):	21 hp 15.7 kW
Gear PTO (claimed):	17 hp 12.7 kW
Hydro PTO (claimed):	16 hp 11.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power assist
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	hydrostatic
6-speed

Hydraulics
Type:	open center
Valves:	1
2 (DTN)
Pump flow:	4.4 gpm 16.7 lpm
Total flow:	7 gpm 26.5 lpm
Steering flow:	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type:	I
Control:	quarter inching valve
position control (DTN)
Rear lift (at ends):	1,356 lbs 615 kg
1,655 lbs 750 kg (DTN)
Rear lift (at 24"/610mm):	1,058 lbs 479 kg
1,655 lbs 750 kg (DTN)

Power Take-off (PTO)
Gear Rear PTO:	transmission
Hydro Rear PTO:	independent
Rear RPM:	540/960
Mid RPM:	2500

Electrical
Ground:	negative
Battery CCA:	433
Battery volts:	12

Engine Detail
Kubota D1005-E2-D16
diesel
3-cylinder
liquid-cooled
Displacement:	61.1 ci 1.0 L
Bore/Stroke:	2.992x2.898 inches 76 x 74 mm
Power (gross):	21 hp 15.7 kW
Air cleaner:	dual paper element
Rated RPM:	2600
Torque:	44 lb-ft 59.7 Nm
Starter volts:	12
Oil capacity:	3.2 qts 3.0 L
Coolant capacity:	4 qts 3.8 L

Dimensions
Wheelbase:	59.1 inches 150 cm
Length:	90.6 inches 230 cm
DTN Length:	89.6 inches 227 cm
Width:	42.4 inches 107 cm
DTN Width:	35.3 inches 89 cm
Gear Weight:	1323 lbs 600 kg
Hydro Weight:	1367 lbs 620 kg
Ground clearance:	12 inches 30 cm
DTN Ground clearance:	11.8 inches 29 cm
