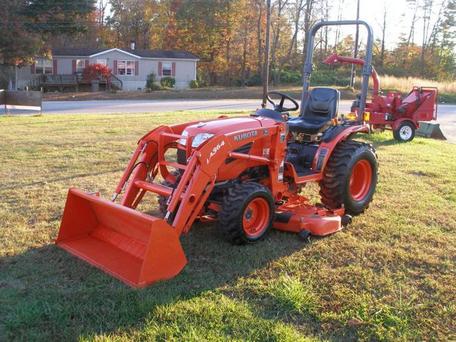

Kubota B2920

Production: 2008 - 2015

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor
Original price:	$14,753 (2011)

Kubota B2920 Power
Engine:	29 hp 21.6 kW
PTO (claimed):	21 hp 15.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Sunshade optional.

Capacity
Fuel:	6.6 gal 25.0 L
Hydraulic system:	4 gal 15.1 L

Hydraulics
Type:	open center
Capacity:	4 gal 15.1 L
Valves:	1 or 2
Pump flow:	4.7 gpm 17.8 lpm
Total flow:	8.3 gpm 31.4 lpm
Steering flow:	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type:	1
Rear lift (at ends):	1,356 lbs 615 kg
Rear lift (at 24"/610mm):	1,058 lbs 479 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/960
Engine RPM:	540@2773 960@2722
Mid PTO:	optional
Mid RPM:	2500
Engine RPM:	2500@2750

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	14.5
40 (optional)
Battery volts:	12

Engine Detail
Kubota D1305
diesel
3-cylinder
liquid-cooled
Displacement:	77 ci 1.3 L
Bore/Stroke:	3.1x3.5 inches 79 x 89 mm
Power:	29 hp 21.6 kW
Air cleaner:	dual paper elements
Rated RPM:	2800
Starter volts:	12
Oil capacity:	3.2 qts 3.0 L
Coolant capacity:	4.6 qts 4.4 L

Transmission
Transmission:	hydrostatic
Gears:	infinite (3-range) forward and reverse
Oil capacity:	16 qts 15.1 L

Dimensions
Wheelbase:	61.5 inches 156 cm
Length:	95.1 inches 241 cm
Width:	49 inches 124 cm
Weight:	1,554 lbs 704 kg
Ground clearance:	12.8 inches 32 cm
Front tread:	32.1 inches 81 cm
Rear tread:	37.4 inches 94 cm
