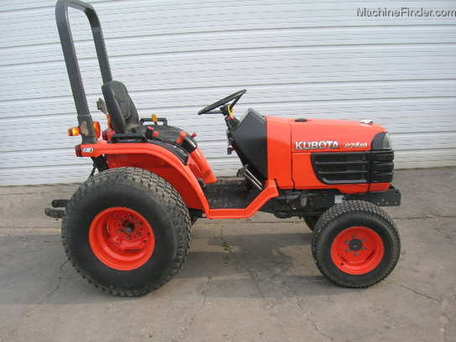

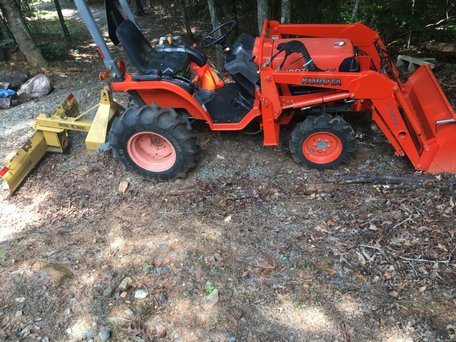

Kubota B7410

Production: 2004 - 2007

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota B7410 Power
Engine (gross):	18 hp 13.4 kW
PTO (claimed):	15 hp 11.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	manual
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	6-speed gear

Hydraulics
Type:	open center
Valves:	1
Total flow:	3.9 gpm 14.8 lpm

Tractor hitch
Rear Type:	I
Control:	quarter inching valve
Rear lift (at ends):	1356 lbs 615 kg
Rear lift (at 24"/610mm):	1058 lbs 479 kg

Power Take-off (PTO)
Rear PTO:	transmission
Rear RPM:	540/960
Mid RPM:	2500

Electrical
Ground:	negative
Battery CCA:	433
Battery volts:	12

Engine Detail
Kubota D782-E2-D20
diesel
3-cylinder
liquid-cooled
Displacement:	47.5 ci 0.8 L
Bore/Stroke:	2.638x2.898 inches 67 x 74 mm
Power (gross):	18 hp 13.4 kW
Air cleaner:	dual paper element
Rated RPM:	2900
Torque:	34 lb-ft 46.1 Nm
Starter volts:	12
Oil capacity:	2.5 qts 2.4 L
Coolant capacity:	2.9 qts 2.7 L

Transmission
Type:	gear
Gears:	6 forward and 2 reverse
Clutch:	dry disc
Oil capacity:	12.5 qts 11.8 L

Dimensions
Wheelbase:	59.1 inches 150 cm
Length:	90.6 inches 230 cm
Width:	42.4 inches 107 cm
Height (steering wheel):	52.2 inches 132 cm
Height (ROPS):	76.4 inches 194 cm
Weight:	1323 lbs 600 kg
Ground clearance:	12 inches 30 cm
