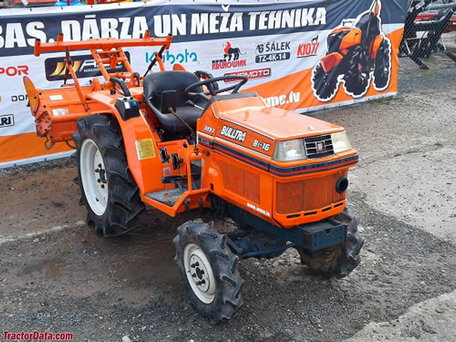

Kubota B1-16
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Sub-Compact Utility tractor |
| Factory: | Japan |
Variants | |
| B1-16D: | 4WD |
Kubota B1-16 Power | |
| Engine: | 16.5 hp 12.3 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 12-speed unsynchronized gear |
Tractor hitch | |
| Rear Type: | 0 |
Power Take-off (PTO) | |
| Rear RPM: | 540/860/1000 (1.375) |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Kubota D950 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 56.57 ci 0.9 L |
| Bore/Stroke: | 2.95x2.76 inches 75 x 70 mm |
| Power: | 16.5 hp 12.3 kW |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 12 forward and 4 reverse |
| Three gears (1-3), plus reverse, in two ranges with additional creeper range. | |
Dimensions | |
| Wheelbase: | 53.4 inches 135 cm |
| Length: | 91.3 inches 231 cm |
| Width: | 45.3 inches 115 cm |
| 2WD Height: | 48.6 inches 123 cm |
| 4WD Height: | 48.8 inches 123 cm |
| 2WD Weight: | 1422 lbs 645 kg |
| 4WD Weight: | 1521 lbs 689 kg |
| 2WD Front tread: | 29.1 inches 73 cm |
| 4WD Front tread: | 30.3 inches 76 cm |
| Rear tread: | 35.8/40.6 inches 90/103 cm |
