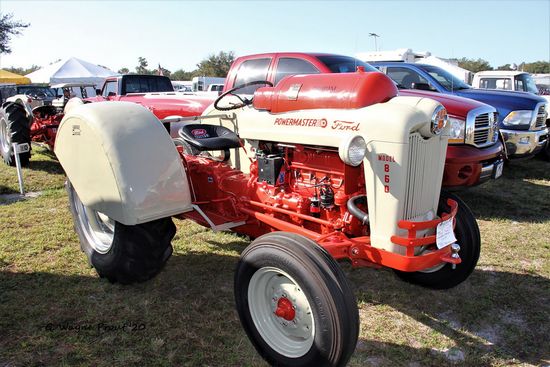

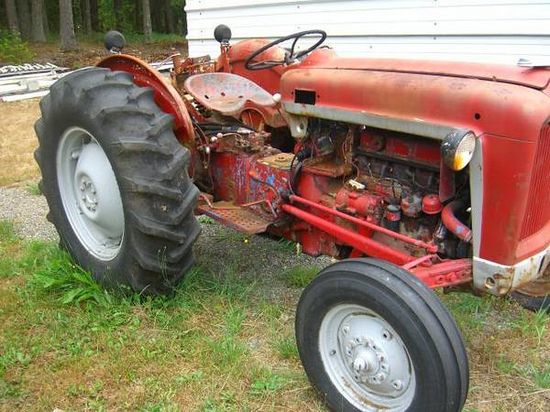

Ford 860
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Ford |
| Type: | Utility tractor |
| Factory: | Highland Park, Michigan, USA |
| Original price: | $2,407 (1957 ) |
| The Ford 800 series consisted of the 820, with no 3-point or PTO; the 850, with a transmission PTO; and the 860 with a live PTO. | |
Variants | |
| no 3-point or hydraulics | |
| transmission PTO | |
| live PTO |
Ford 860 Power | |
| Belt (claimed): | 40 hp 29.8 kW |
| Plows: | 3*14-inch |
| Drawbar (tested): | 39.00 hp 29.1 kW |
| Belt (tested): | 45.41 hp 33.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| power assist optional | |
| Brakes: | differential mechanical expanding shoe |
| Cab: | Open operator station. |
| Transmission: | 5-speed unsynchronized gear |
Capacity | |
| Fuel: | 14 gal 53.0 L |
| Hydraulic system: | 2 gal 7.6 L |
| Rear axle: | 11 qts 10.4 L |
Hydraulics | |
| Capacity: | 2 gal 7.6 L |
Tractor hitch | |
| Rear Type: | I |
| Rear lift: | 1,250 lbs 567 kg |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540 (1.125) |
860 Serial Numbers | |
| Location: | On the left-hand side of the transmission housing behind the starter. |
| 1954: | 1 |
| 1955: | 10615 |
| 1956: | 77271 |
| 1957: | 116368 |
Electrical | |
| Ground: | positive |
| Charging system: | generator |
| Charging amps: | 20 |
| Battery volts: | 6 |
Engine Detail | |
| Ford EAF | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled vertical inline | |
| Displacement: | 172 ci 2.8 L |
| Bore/Stroke: | 3.90x3.60 inches 99 x 91 mm |
| Air cleaner: | oil bath |
| Compression: | 6.75:1 |
| Rated RPM: | 2200 |
| Firing order: | 1-2-4-3 |
| Starter volts: | 6 |
| Coolant capacity: | 15 qts 14.2 L |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | dry disc |
| Oil capacity: | 8 qts 7.6 L |
| Oil type: | SAE 80 Mild EP |
Dimensions | |
| Wheelbase: | 75.18 inches 190 cm |
| Length: | 121.8 inches 309 cm |
| Width: | 64.75 inches 164 cm |
| Height: | 59.3 inches 150 cm |
| Operating weight: | 3,400 lbs 1542 kg |
| Ballasted weight: | 6,700 lbs 3039 kg |
| Ground clearance: | 21 inches 53 cm |
| Front tread: | 52 to 76 inches 132 to 193 cm |
| Rear tread: | 52 to 76 inches 132 to 193 cm |
