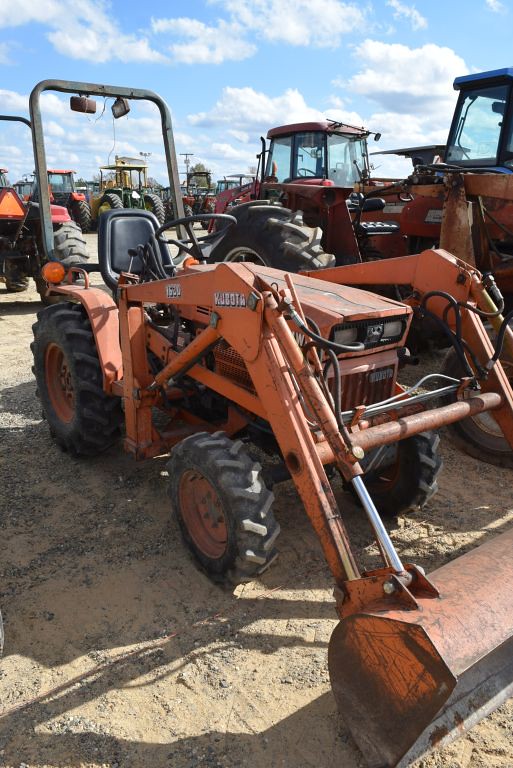

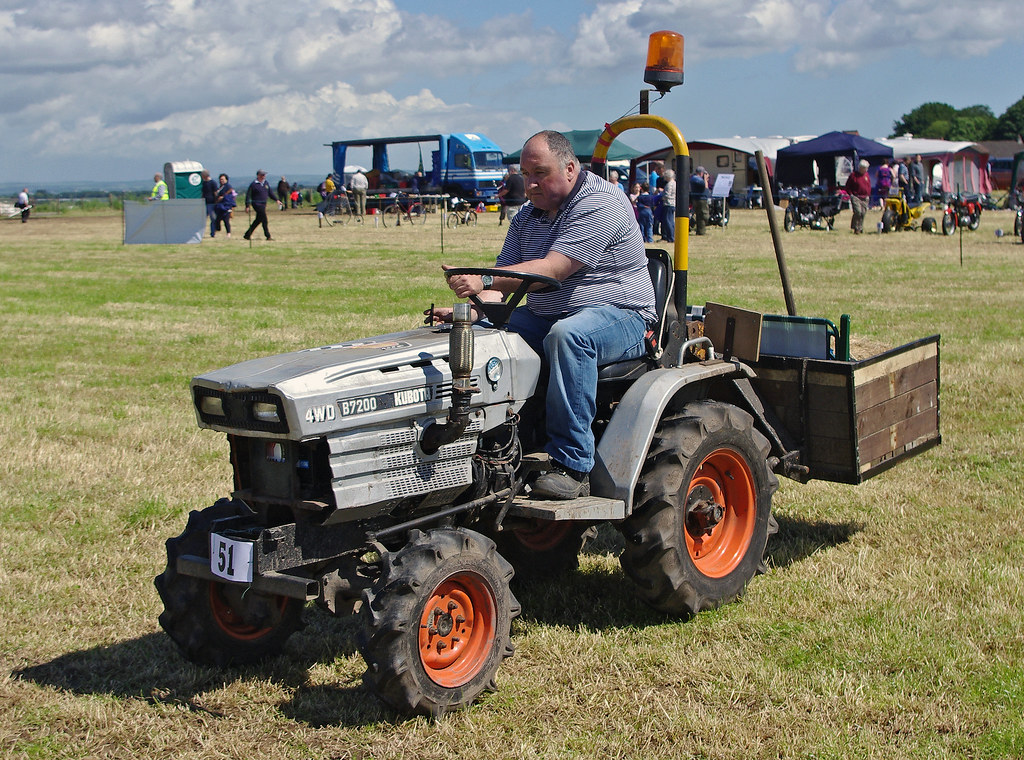

Kubota B7200

Production: 1983 - 1990

PDF

• Download Kubota B7200HST 4WD Workshop Manual

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor
Factory:	Japan
Original price:	$10,500 (1990 B7200HST-D)

Variants
B7200E:	2WD gear
B7200D:	4WD gear
B7200HST-E:	2WD hydro
B7200HST-D:	4WD hydro

Kubota B7200 Power
Engine (gross):	17 hp 12.7 kW
PTO (claimed):	14 hp 10.4 kW
Plows:	1 (12-inch)

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (B7200D)
Steering:	manual
Brakes:	dry internal expanding
Cab:	Two-post ROPS.
Transmissions:	6-speed gear
hydrostatic

Capacity
Gear Fuel:	3.8 gal 14.4 L
Hydro Fuel:	5.3 gal 20.1 L
Gear Hydraulic system:	3.2 gal 12.1 L
Hydro Hydraulic system:	3.6 gal 13.6 L

Hydraulics
Type:	open center
Gear Capacity:	3.2 gal 12.1 L
Hydro Capacity:	3.6 gal 13.6 L
Valves:	1
Total flow:	4 gpm 15.1 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1,036 lbs 469 kg
Rear lift (at 24"/610mm):	705 lbs 319 kg

Power Take-off (PTO)
Rear RPM:	540/825
Hydro Mid RPM:	1,546/2,455
Front PTO:	optional
Front RPM:	2500

B7200 Serial Numbers
Location:	Right side of transmission case
1983:	50532
1984:	51758
1985:	60683
1986:	62548
1987:	64737
1988:	65307
1984:	50026 (HST)
1985:	50711 (HST)
1986:	52531 (HST)
1987:	55065 (HST)
1988:	55977 (HST)

Electrical
Charging system:	alternator
Charging amps:	35*Optional
Battery volts:	12

Engine Detail
Kubota D950
diesel
3-cylinder
liquid-cooled
Displacement:	56.6 ci 0.9 L
Bore/Stroke:	2.95x2.76 inches 75 x 70 mm
Power (gross):	17 hp 12.7 kW
Air cleaner:	dry paper element
Rated RPM:	2500
Starter volts:	12
Oil capacity:	3.6 qts 3.4 L
Coolant capacity:	3 qts 2.8 L

Dimensions
Gear Wheelbase:	55.1 inches 139 cm
Hydro Wheelbase:	57.9 inches 147 cm
Gear Length:	100 inches 254 cm
Hydro Length:	102 inches 259 cm
Width:	44.9 inches 114 cm
2WD Height (exhaust):	71.5 inches 181 cm
4WD Height (exhaust):	72 inches 182 cm
2WD Front tread:	28 inches 71 cm
4WD Front tread:	33.9 inches 86 cm
Rear tread:	29.1 to 35.8 inches 73 to 90 cm
