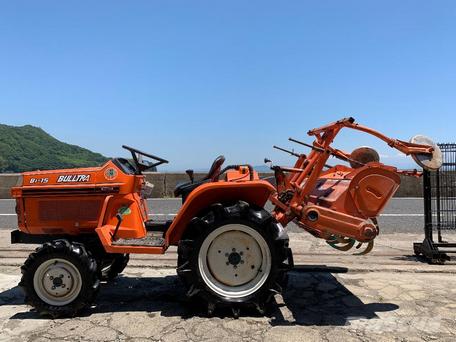

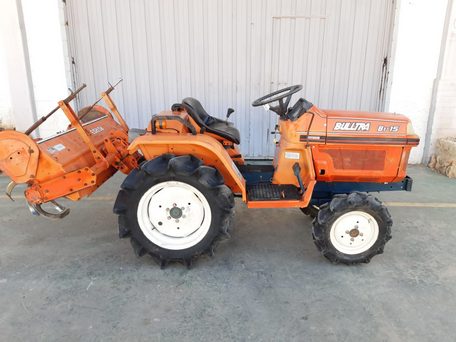

Kubota B1-15

Production: 1985 - 1988

Production
Manufacturer:	Kubota
Type:	Sub-Compact Utility tractor
Factory:	Japan

Variants
B1-15DT:	4WD

Kubota B1-15 Power
Engine:	16 hp 11.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
Cab:	Open operator station.
Transmission:	6-speed unsynchronized gear

Tractor hitch
Rear Type:	0

Power Take-off (PTO)
Rear RPM:	540/860/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D850
diesel
3-cylinder
liquid-cooled
Displacement:	52.18 ci 0.9 L
Bore/Stroke:	2.83x2.76 inches 72 x 70 mm
Power:	16 hp 11.9 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	unsynchronized gear
Gears:	6 forward and 2 reverse

Dimensions
2WD Wheelbase:	48.8 inches 123 cm
4WD Wheelbase:	49 inches 124 cm
Length:	86.2 inches 218 cm
Width:	41.5 inches 105 cm
2WD Height:	49 inches 124 cm
4WD Height:	49.2 inches 124 cm
2WD Weight:	1235 lbs 560 kg
4WD Weight:	1257 lbs 570 kg
2WD Front tread:	28 inches 71 cm
4WD Front tread:	30.3 inches 76 cm
Rear tread:	31.9/35.4 inches 81/89 cm
