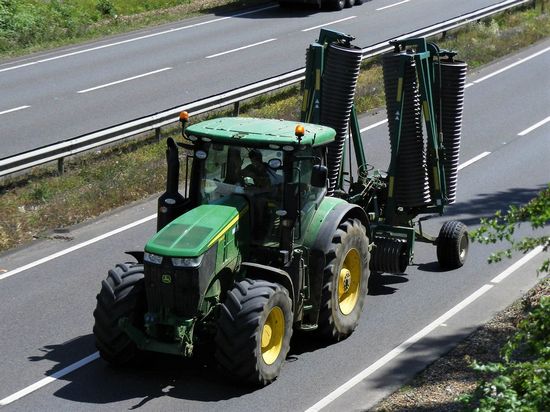

John Deere 7290R
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
| Original price: | $248,818 (2014 ) |
John Deere 7290R Power | |
| Engine (gross): | 290 hp 216.3 kW |
| Engine (max): | 319 hp 237.9 kW |
| PTO (claimed): | 242 hp 180.5 kW |
| Drawbar (tested): | 223.85 hp 166.9 kW |
| PTO (tested): | 282.68 hp 210.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Differential lock: | full-locking electro-hydraulic rear |
| limited slip front | |
| electro-hydraulic front (optional) | |
| Steering: | hydrostatic power |
| ActiveCommand Steering optional | |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic (optional) |
| dual-line air (optional) | |
| Cab: | CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control. |
| Transmissions: | 23-speed full power shift |
| infinitely variable transmission | |
Capacity | |
| Fuel: | 125 gal 473.1 L (e23) |
| 131 gal 495.8 L (e23 optional) | |
| 137 gal 518.5 L (IVT) | |
| 143 gal 541.3 L (IVT optional) | |
| Exhaust fluid (DEF): | 6.8 gal 25.7 L |
| Hydraulic system: | 17.2 gal 65.1 L |
| 5.3 gal 20.1 L (optional aux tank) | |
Hydraulics | |
| Type: | closed-center pressure and flow compensated |
| Capacity: | 17.2 gal 65.1 L |
| 5.3 gal 20.1 L (optional aux tank) | |
| Pressure: | 2958 psi 204.0 bar |
| Rear valves: | 3 to 6 |
| Mid valves: | 0 to 3 |
| Front valves: | 0 to 2 |
| Pump flow: | 43 gpm 162.8 lpm |
| 59 gpm 223.3 lpm *Optional. Actual measured flow was 58.3 GPM. | |
| Rear SCV flow: | 35 gpm 132.5 lpm |
| Front SCV flow: | 33 gpm 124.9 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electro-hydraulic draft sensing |
| Rear lift: | 22500 lbs 10206 kg |
| Rear Arms: | hydraulic center link*Optional |
| Front Hitch: | IIIN*Optional |
| Front lift (at ends): | 11464 lbs 5200 kg |
| Drawbar: | Cat. 3 adjustable swinging drawbar. Optional heavy-duty support. |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| 540/1000 (1.375) | |
| Front PTO: | independent |
| Front RPM: | 1000 (1.375) |
| 1000 (1.75) | |
7290R Serial Numbers | |
| Location: | Right side of tractor frame above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| 240*Optional | |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
| Battery Group: | 31 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement: | 549 ci 9.0 L |
| Bore/Stroke: | 4.66x5.35 inches 118 x 136 mm |
| Emissions: | Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (EC 97/98): | 290 hp 216.3 kW |
| Maximum Power (EC 97/68): | 319 hp 237.9 kW |
| Fuel system: | electronic high pressure common rail |
| Air cleaner: | two stage dry |
| Compression: | 16:1 |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 115 inches 292 cm |
| Length: | 218 inches 553 cm |
| Weight: | 27180 lbs 12328 kg |
| Clearance (front axle): | 24 inches 60 cm (G42 tires) |
| 25 inches 63 cm (G43 tires) | |
| 26 inches 66 cm (G44 tires) | |
| Clearance (rear axle): | 23 inches 58 cm (G47 tires) |
| 25 inches 63 cm (G48 tires) | |
| 27 inches 68 cm (G49 tires) | |
| Clearance (drawbar): | 14 inches 35 cm (G47 tires) |
| 17 inches 43 cm (G48 tires) | |
| 18 inches 45 cm (G49 tires) | |
| Front axle: | 1300 MFWD |
| Front axle: | Triple-Link Suspension Plus |
| Rear axle: | 4.33 by 100.4 inches 109 by 2550 mm |
| Rear axle: | 4.33 by 118.5 inches 109 by 3009 mm |
| Rear axle: | 4.72 by 100.4 inches 119 by 2550 mm |
| Rear axle: | 4.72 by 118.5 inches 119 by 3009 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 77.5 to 100 inches 196 to 254 cm |
| Rear tread: | 86.9 to 109.4 inches 220 to 277 cm |
| Rear tread: | 95 to 117.4 inches 241 to 298 cm |
