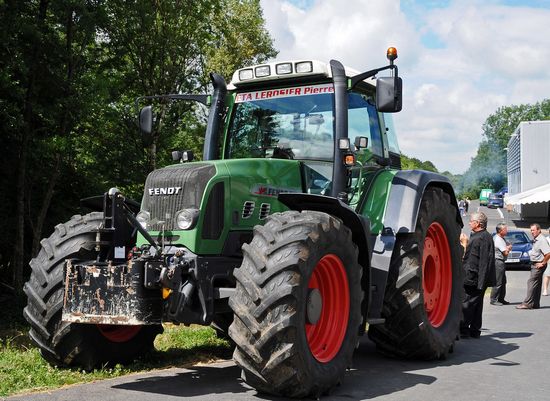

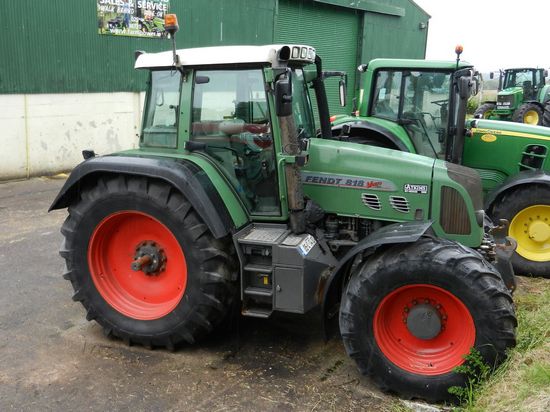

Fendt 818 Vario

Production: 2006

Production
Manufacturer:	Fendt
Factory:	Marktoberdoft, Germany

Fendt 818 Vario Power
Engine (gross):	186 hp 138.7 kW
Engine (net):	170 hp 126.8 kW
Engine (max):	192 hp 143.2 kW
PTO (claimed):	160 hp 119.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	wet discs
Cab:	Cab standard with air-conditioning.
Transmission:	continuously variable transmission (IVT)

Hydraulics
Type:	load sensing
Pressure:	2,900 psi 200.0 bar
Valves:	3 or 4
Total flow:	29.1 gpm 110.1 lpm

Tractor hitch
Rear lift:	13,345 lbs 6053 kg
Front lift:	5,520 lbs 2503 kg

Power Take-off (PTO)
Rear RPM:	540/540E/1000
Front RPM:	1000 (optional)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	200
Battery CCA:	1020
Battery volts:	12
Battery AH:	170

Engine Detail
Deutz TCD 2012 L06 4V
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	369.6 ci 6.1 L
Bore/Stroke:	3.976x4.961 inches 101 x 126 mm
Emissions:	Tier IIIa
Emission control:	egr
Rated Power (ECE R24):	170 hp 126.8 kW
Rated Power (EC 97/98):	186 hp 138.7 kW
Maximum Power (ECE R24):	185 hp 138.0 kW
Maximum Power (EC 97/68):	192 hp 143.2 kW
Rated RPM:	2100
Torque:	592 lb-ft 802.8 Nm
Torque RPM:	1450
Starter power:	4 hp 3.0 kW
Oil change:	500 h

Transmission
Transmission:	Fendt Vario
Type:	continuously variable transmission (IVT)
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	107 inches 271 cm
Length:	187 inches 474 cm
Width:	108 inches 274 cm
Height:	119 inches 302 cm
Weight:	15,480 lbs 7021 kg
Max weight:	27,557 lbs 12499 kg
Ground clearance:	22 inches 55 cm
Front tread:	76 inches 193 cm
Rear tread:	75.5 inches 191 cm
