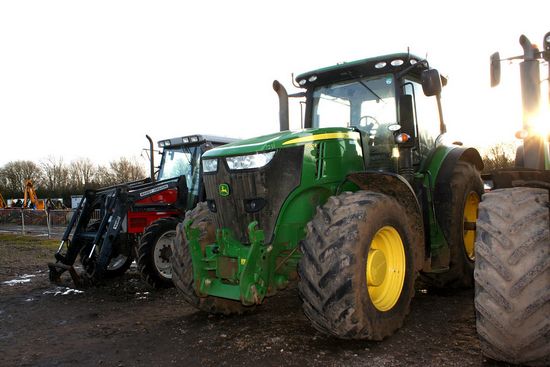

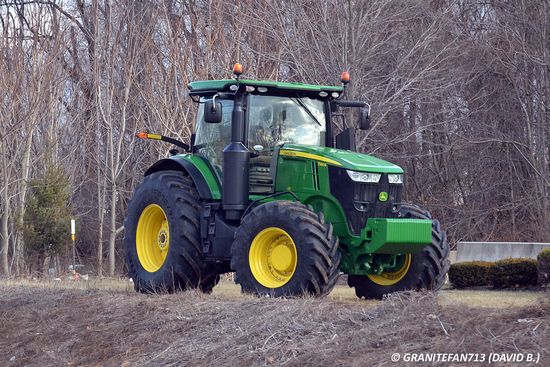

John Deere 7290R
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
John Deere 7290R Power | |
| Engine (gross): | 290 hp 216.3 kW |
| Engine (net): | 278 hp 207.3 kW |
| Engine (max): | 323 hp 240.9 kW |
| PTO (claimed): | 242 hp 180.5 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic rear |
| linked electro-hydraulic front on TLS Plus axle with brakes*Optional | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. AutoTrac ready |
| Transmissions: | 23-speed full power shift |
| infinitely variable transmission | |
Capacity | |
| E23 Fuel: | 143.7 gal 543.9 L |
| IVT Fuel: | 155.6 gal 588.9 L |
| E23 G49 tires Fuel: | 148.5 gal 562.1 L |
| IVT G49 tires Fuel: | 160.4 gal 607.1 L |
| Hydraulic system: | 42.3 gal 160.1 L |
Hydraulics | |
| Type: | closed center pressure-flow compensated |
| Capacity: | 42.3 gal 160.1 L |
| Pressure: | 2958 psi 204.0 bar |
| Valves: | 3 to 6 |
| Pump flow: | 42.8 gpm 162.0 lpm *Standard 63cc pump |
| 59 gpm 223.3 lpm *Optional 85cc pump | |
| Rear SCV flow: | 34.9 gpm 132.1 lpm |
| Front SCV flow: | 33.3 gpm 126.0 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electro-hydraulic draft sensing |
| Rear lift: | 15200 lbs 6894 kg |
| 17300 lbs 7847 kg *Optional | |
| Front Hitch: | IIIN |
| Front lift: | 11464 lbs 5200 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| 540/1000 (1.375) | |
| 540E/1000/1000E (1.375) | |
| Engine RPM: | 540@1950 540E@ 1750 1000@ 1950 1000E@ 1750 |
| Front PTO: | independent*Optional |
| Front RPM: | 1000 (1.375) |
| 1000 (1.75) | |
| Engine RPM: | 1000@1940 |
7290R Serial Numbers | |
| Location: | Serial number plate on right side of tractor frame, above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
| Battery Group: | 31 |
Engine Detail | |
| John Deere PowerTech PVX | |
| variable geometry turbocharger diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement: | 549 ci 9.0 L |
| Bore/Stroke: | 4.66x5.35 inches 118 x 136 mm |
| Emissions: | Stage IIIB |
| Emission control: | cooled exhaust gas recirculation |
| Rated Power (ECE R24): | 278 hp 207.3 kW |
| Rated Power (EC 97/98): | 290 hp 216.3 kW |
| Maximum Power (ECE R24): | 310.1 hp 231.2 kW |
| Maximum Power (EC 97/68): | 323 hp 240.9 kW |
| Fuel system: | electronic high-pressure common rail |
| Compression: | 16:1 |
| Rated RPM: | 2100 |
| Operating RPM: | 1550-2100 |
| Torque: | 962.5 lb-ft 1305.1 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 47 qts 44.5 L |
Dimensions | |
| Wheelbase: | 115.2 inches 292 cm |
| Length: | 218 inches 553 cm |
| Height (cab): | 132 inches 335 cm |
| Weight: | 23845 lbs 10816 kg |
| Clearance (front axle): | 19.5 inches 49 cm |
| Front axle: | 1300 MFWD |
| Front axle: | Triple-Link Suspension MFWD |
| Rear axle: | Flange |
| Rear axle: | Bar: 4.33 by 100.4 inches 109 by 2550 mm |
| Rear axle: | Bar: 4.33 by 118.5 inches 109 by 3009 mm |
| Rear axle: | Bar: 4.72 by 100.4 inches 119 by 2550 mm |
| Rear axle: | Bar: 4.72 by 118.5 inches 119 by 3009 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
