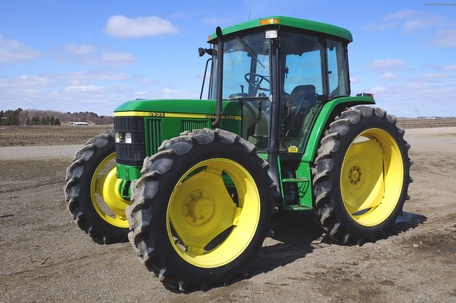

John Deere 6405
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $35,000 (1999 ) |
| The 6405 was one of the Advantage Series tractors designed to provide an economical alternative to the full-features on the TEN series tractors. Transmission options, hydraulics, and the cab were the major differences between the two models. | |
Variants | |
| TEN series | |
| Advantage series |
John Deere 6405 Power | |
| PTO (claimed): | 85 hp 63.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post foldable ROPS. Advantage Cab optional with air-conditioning. |
| Transmissions: | 12-speed fully synchronized |
| 16-speed power shuttle | |
Hydraulics | |
| Type: | HydraVantage constant flow load sensing |
| Pressure: | 2500 psi 172.4 bar |
| Valves: | 2 to 4 |
| Total flow: | 17.5 gpm 66.2 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| Control: | position control with optional draft control |
| Rear lift: | 5,028 lbs 2280 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@2143 1000@2208 |
6405 Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle. |
| 1998: | 206000 |
| 1999: | 233700 |
| 2000: | 260600 |
| 2001: | 322099 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Battery CCA: | 830 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 4045 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Air cleaner: | dry dual element |
| Compression: | 17.8:1 |
| Rated RPM: | 2300 |
| Idle RPM: | 875-2510 |
| Operating RPM: | 1000-2300 |
| Torque: | 319 lb-ft 432.6 Nm |
| Torque RPM: | 1400 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Starter power: | 4.0 hp 3.0 kW |
| Oil capacity: | 12.7 qts 12.0 L |
| Coolant capacity: | 11.6 qts 11.0 L |
| Cab Coolant capacity: | 14.3 qts 13.5 L |
| Intake valve clearance: | 0.018 inches 0.457 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 94.5 inches 240 cm |
| Length: | 162.7 inches 413 cm |
| Rear axle: | Flange |
| Rear tread: | 59.5/63.5/67.4/71.3/75.3 inches 151/161/171/181/191 cm |
