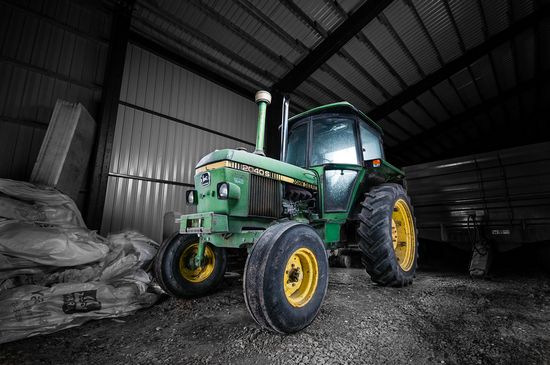

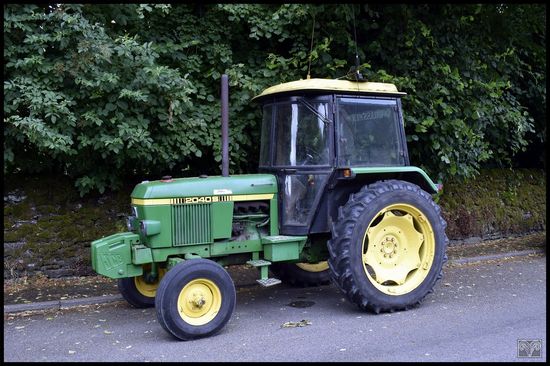

John Deere 2040S
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 2040S Power | |
| Engine (net): | 75 hp 55.9 kW |
| PTO (claimed): | 66 hp 49.2 kW (rated) |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | SoundGard 2 Cab. |
| Transmissions: | 8-speed partially synchronized |
| 16-speed two-speed power shift | |
Hydraulics | |
| Type: | closed center |
| Pressure: | 2466 psi 170.0 bar |
| Pump flow: | 12.4 gpm 46.9 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | lower-link draft control |
| Rear lift: | 5620 lbs 2549 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic disc |
| Rear RPM: | 540 |
| 540/1000*Optional | |
| Engine RPM: | 540@2400 1000@2400 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 55 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 66 |
Engine Detail | |
| John Deere | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 239.2 ci 3.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Fuel system: | direct injection |
| Air cleaner: | dry |
| Compression: | 16.8:1 |
| Rated RPM: | 2500 |
| Torque: | 181.4 lb-ft 246.0 Nm |
| Torque RPM: | 1400 |
| Starter volts: | 12 |
| Oil capacity: | 9 qts 8.5 L |
| Coolant capacity: | 199 qts 188.3 L |
Dimensions | |
| 2WD Wheelbase: | 89.8 inches 228 cm |
| 4WD Wheelbase: | 90 inches 228 cm |
| 2WD Length: | 147 inches 373 cm |
| 4WD Length: | 152 inches 386 cm |
| Width: | 81 inches 205 cm |
| Height (cab): | 104 inches 264 cm |
| Height (exhaust): | 110 inches 279 cm |
| 2WD Shiping weight: | 7365 lbs 3340 kg |
| 4WD Shiping weight: | 7995 lbs 3626 kg |
| 2WD Clearance (front axle): | 26 inches 66 cm |
| 4WD Clearance (front axle): | 19 inches 48 cm |
| 2WD Front tread: | 58 to 79 inches 147 to 200 cm |
| 4WD Front tread: | 59 to 78 inches 149 to 198 cm |
| Rear tread: | 63 to 79 inches 160 to 200 cm |
