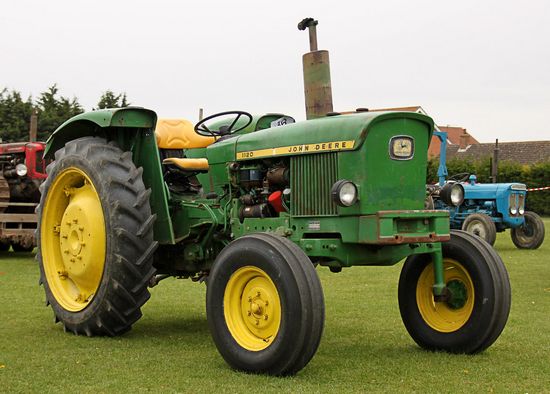

John Deere 1120
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 1120 Power | |
| Engine: | 51 hp 38.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmissions: | 8-speed |
| 16-speed | |
Hydraulics | |
| Pump flow: | 12.9 gpm 48.8 lpm |
Tractor hitch | |
| Rear lift: | 3572 lbs 1620 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 28 |
| 33 | |
| 55 | |
| Charging volts: | 14 |
| Batteries: | 2 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 164.5 ci 2.7 L |
| Bore/Stroke: | 4.02x4.33 inches 102 x 110 mm |
| Power: | 51 hp 38.0 kW |
| Rated RPM: | 2500 |
| Torque: | 36.4 lb-ft 49.4 Nm |
| Torque RPM: | 1350 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 81 inches 205 cm |
| Length: | 135 inches 342 cm |
| Height: | 100 inches 254 cm |
| Weight: | 5557 lbs 2520 kg |
