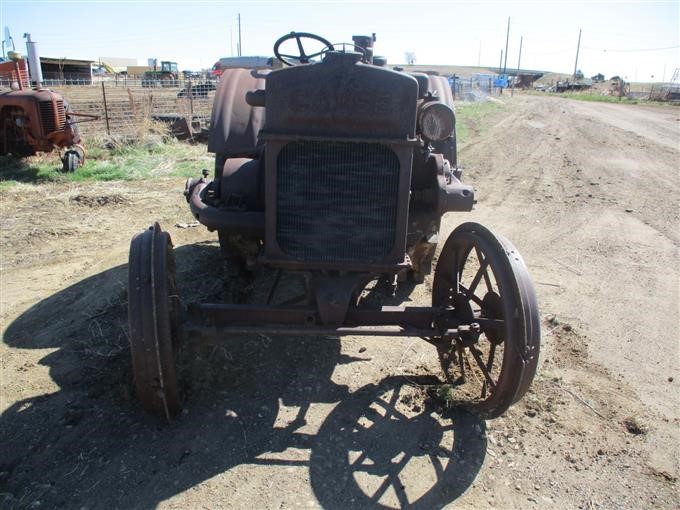

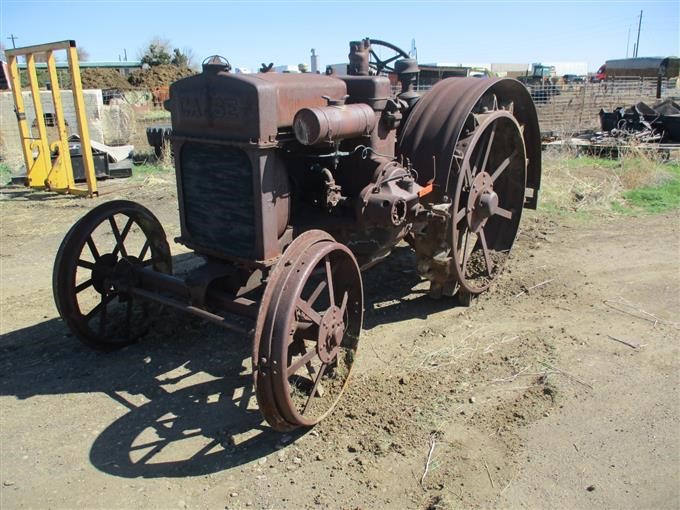

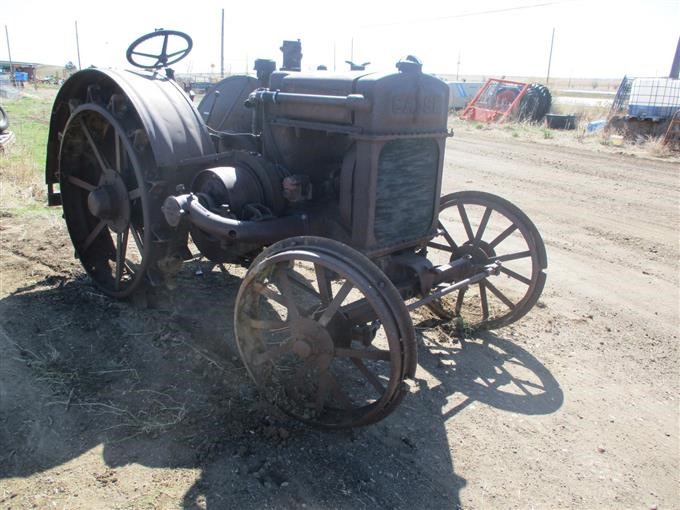

J.I. Case 18-32

Production: 1924 - 1927
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA

J.I. Case 18-32 Power

Drawbar (claimed):18 hp 13.4 kW
Belt (claimed):32 hp 23.9 kW
Plows:3
Drawbar (tested):24.52 hp 18.3 kW
Belt (tested):36.73 hp 27.4 kW

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear

Power Take-off (PTO)

Rear RPM:540

18-32 Serial Numbers

Location:Left rear fender.

Engine Detail

J.I. Case
kerosene
4-cylinder
liquid-cooled
Displacement:381.7 ci 6.3 L
Bore/Stroke:4.50x6.00 inches 114 x 152 mm
Rated RPM:1000
Starter type:hand-crank

Transmission

Transmission:J.I. Case
Type:gear
Gears:2 forward and 1 reverse

Dimensions

Length:127 inches 322 cm
Width:72 inches 182 cm
Height:68 inches 172 cm
Operating weight:6,500 lbs 2948 kg
