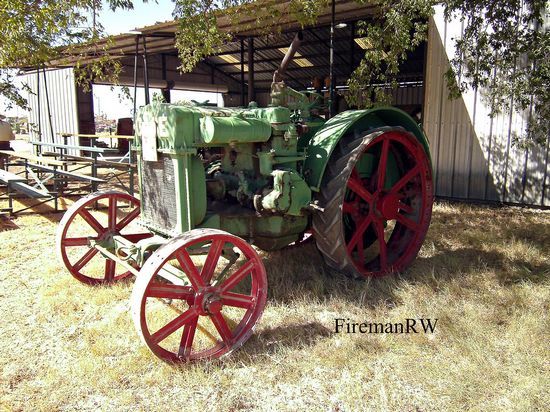

Case 15-27

Production: 1919 - 1924
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
Total built:17,628

J.I. Case 15-27 Power

Drawbar (claimed):15 hp 11.2 kW
Belt (claimed):27 hp 20.1 kW
Plows:3
Drawbar (tested):21.81 hp 16.3 kW
Belt (tested):31.23 hp 23.3 kW

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station. Optional canopy.
Transmission:2-speed gear

Power Take-off (PTO)

Rear PTO:transmission (optional)
Rear RPM:540

Engine Detail

J.I. Case
kerosene
4-cylinder
liquid-cooled
Displacement:381.7 ci 6.3 L
Bore/Stroke:4.50x6.00 inches 114 x 152 mm
Rated RPM:900
Starter type:hand-crank
Coolant capacity:44 qts 41.6 L

Transmission

Manufacturer:J.I. Case
Type:gear
Gears:2 forward and 1 reverse

Dimensions

Length:127 inches 322 cm
Width:72 inches 182 cm
Height:68 inches 172 cm
Weight:6,460 lbs 2930 kg
