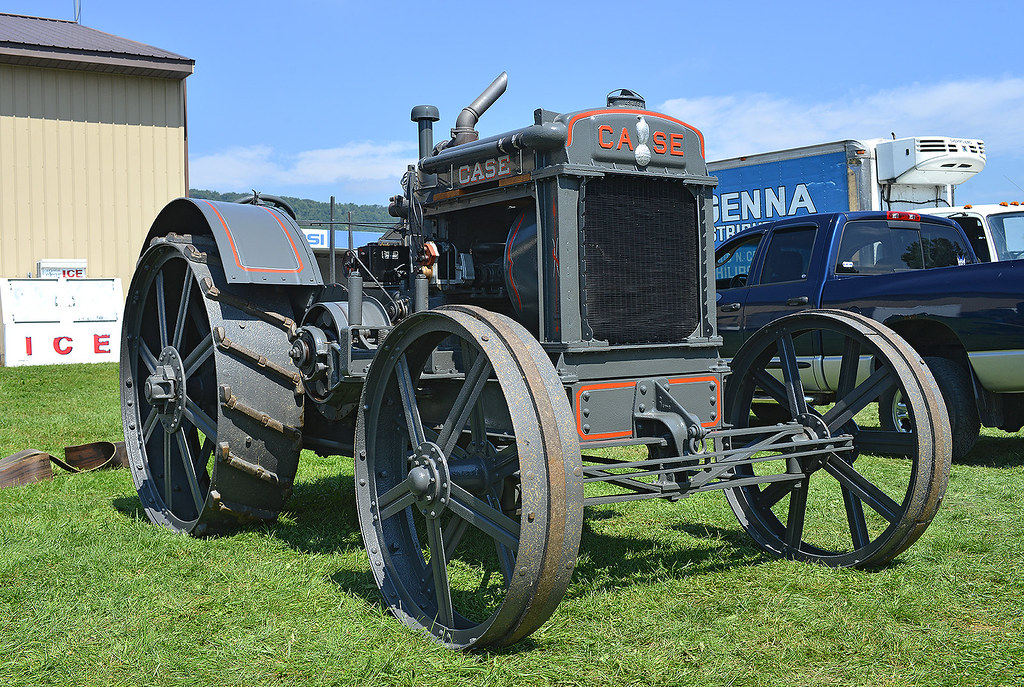

Case 25-45

Production: 1924 - 1927
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA

J.I. Case 25-45 Power

Drawbar (claimed):25 hp 18.6 kW
Belt (claimed):45 hp 33.6 kW
Plows:4-5 (14 inch)
Drawbar (tested):34.65 hp 25.8 kW
Belt (tested):52.59 hp 39.2 kW

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear

Power Take-off (PTO)

Rear RPM:540

Engine Detail

J.I. Case
kerosene
4-cylinder
liquid-cooled
Displacement:641 ci 10.5 L
Bore/Stroke:5.50x6.75 inches 140 x 171 mm
Rated RPM:850
Starter type:hand-crank

Transmission

Transmission:J.I. Case
Type:gear
Gears:2 forward and 1 reverse

Dimensions

Length:153 inches 388 cm
Width:82.5 inches 209 cm
Height:90 inches 228 cm
Weight:10,065 lbs 4565 kg
