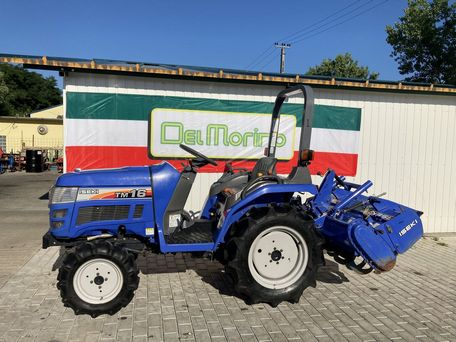

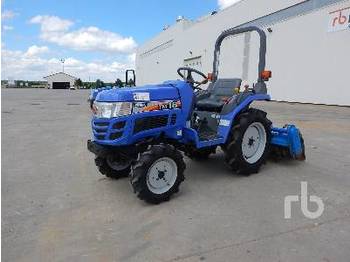

Iseki TM16

Production: 2006 - 2012

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TM16 Power
Engine:	16 hp 11.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS.
Transmissions:	6-speed gear
9-speed gear

Tractor hitch
Rear Type:	I
Control:	position control

Power Take-off (PTO)
Clutch:	dry disc
Rear RPM:	540/750/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3112
diesel
3-cylinder
liquid-cooled
Displacement:	68.5 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power:	16 hp 11.9 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	53 inches 134 cm
Length:	87 inches 220 cm
Width:	40.6 inches 103 cm
Height:	72.1 inches 183 cm
Weight:	1466 lbs 664 kg
Ground clearance:	11.8 inches 29 cm
Front tread:	30.9 inches 78 cm
Rear tread:	32.3 to 36.6 inches 82 to 92 cm
