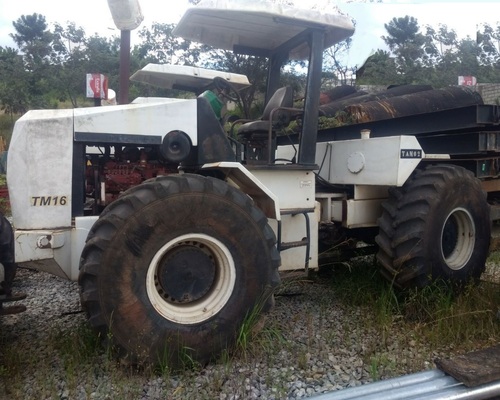

Müller TM16

Production: 2002 - 2004

Production
Manufacturer:	Müller (a part of Proton Primus)
Type:	Four-wheel Drive (4WD) tractor
Factory:	Brazil

Müller TM16 Power
Engine:	152 hp 113.3 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	planetary
Steering:	articulated power
Brakes:	hydraulic disc
Cab:	Cab standard with air-conditioning.
Transmission:	12-speed

Capacity
Fuel:	103 gal 389.9 L
Hydraulic system:	11.9 gal 45.0 L

Hydraulics
Capacity:	11.9 gal 45.0 L

Electrical
Charging system:	alternator
Charging amps:	90
Charging volts:	14
Batteries:	2
Battery volts:	12

Engine Detail
Cummins 6BT5.9
turbocharged diesel
6-cylinder
liquid-cooled
Power:	152 hp 113.3 kW
Fuel system:	direct injection
Rated RPM:	2500
Torque:	410.1 lb-ft 556.1 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	12
Coolant capacity:	39.1 qts 37.0 L

Transmission
Gears:	12 forward and 2 reverse
Clutch:	ceramic disc
Oil capacity:	22.2 qts 21.0 L
Six speed gearbox with two-speed transfer case.

Dimensions
Wheelbase:	112.6 inches 286 cm
Length:	200.8 inches 510 cm
Width:	94 inches 238 cm
Height:	106.3 inches 270 cm
Weight:	15650 lbs 7098 kg
Ballasted weight:	18740 lbs 8500 kg
