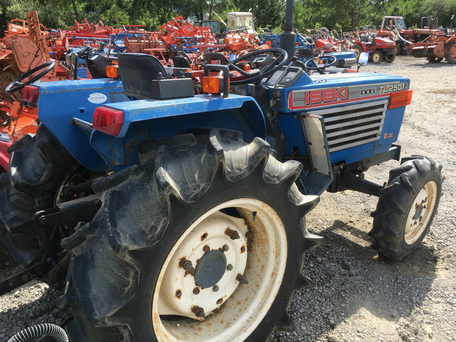

Iseki TL2501
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Iseki |
| Type: | Compact Utility tractor |
Variants | |
| TL2501F: | 4WD |
Iseki TL2501 Power | |
| Engine: | 24.7 hp 18.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Cab: | Open operator station. |
| Transmission: | 18-speed |
Tractor hitch | |
| Rear Type: | JIS1 |
Power Take-off (PTO) | |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 553@2600 731@2600 906@2600 1280@2600 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Isuzu E3AD1 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 91.4 ci 1.5 L |
| Bore/Stroke: | 3.385x3.385 inches 86 x 86 mm |
| Power: | 24.7 hp 18.4 kW |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 7.4 qts 7.0 L |
Transmission | |
| Gears: | 18 forward and 6 reverse |
| Oil capacity: | 36.5 qts 34.5 L |
| Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges. | |
Dimensions | |
| Wheelbase: | 65 inches 165 cm |
| Length: | 79.1 inches 200 cm |
| Width: | 53.4 inches 135 cm |
| Height (exhaust): | 78 inches 198 cm |
| 2WD Weight: | 2249 lbs 1020 kg |
| 4WD Weight: | 2469 lbs 1119 kg |
| 2WD Ground clearance: | 13.6 inches 34 cm |
| 4WD Ground clearance: | 12.6 inches 32 cm |
| 2WD Front tread: | 38.6 to 50.4 inches 98 to 128 cm |
| 4WD Front tread: | 41.3 inches 104 cm |
| Rear tread: | 40.2 to 52.8 inches 102 to 134 cm |
