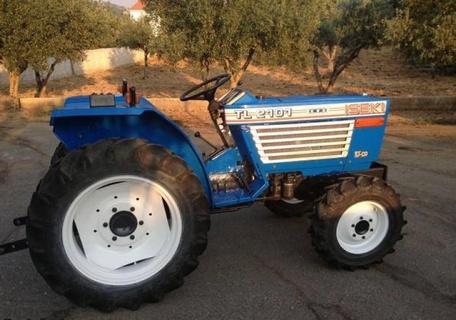

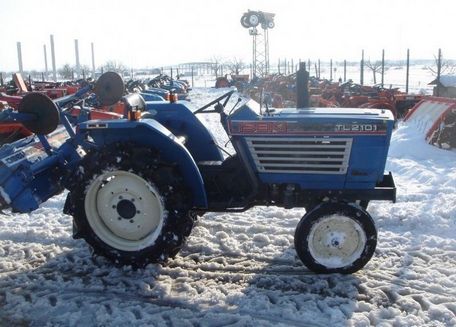

Iseki TL2101
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Iseki |
| Type: | Compact Utility tractor |
Variants | |
| TL2101F: | 4WD |
Iseki TL2101 Power | |
| Engine: | 20.7 hp 15.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Cab: | Open operator station. |
| Transmission: | 18-speed |
Tractor hitch | |
| Rear Type: | JIS1 |
Power Take-off (PTO) | |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 553@2600 731@2600 906@2600 1280@2600 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Isuzu E3AG1 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 87.2 ci 1.4 L |
| Bore/Stroke: | 3.307x3.385 inches 84 x 86 mm |
| Power: | 20.7 hp 15.4 kW |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 7.4 qts 7.0 L |
Transmission | |
| Gears: | 18 forward and 6 reverse |
| Oil capacity: | 36 qts 34.1 L |
| Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges. | |
Dimensions | |
| Wheelbase: | 62.2 inches 157 cm |
| Length: | 113 inches 287 cm |
| Width: | 49.2 inches 124 cm |
| Height (exhaust): | 78 inches 198 cm |
| 2WD Weight: | 2094 lbs 949 kg |
| 4WD Weight: | 2326 lbs 1055 kg |
| 2WD Ground clearance: | 11.8 inches 29 cm |
| 4WD Ground clearance: | 11 inches 27 cm |
| 2WD Front tread: | 37.8 inches 96 cm |
| 4WD Front tread: | 41.3 inches 104 cm |
| Rear tread: | 38.6 to 44.5 inches 98 to 113 cm |
