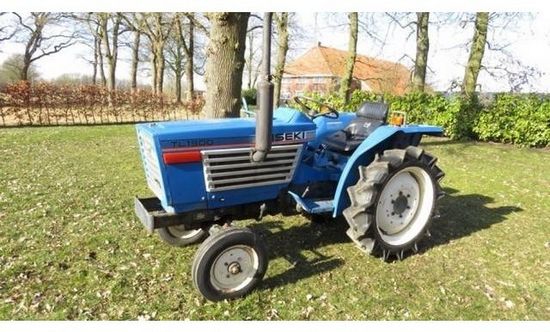

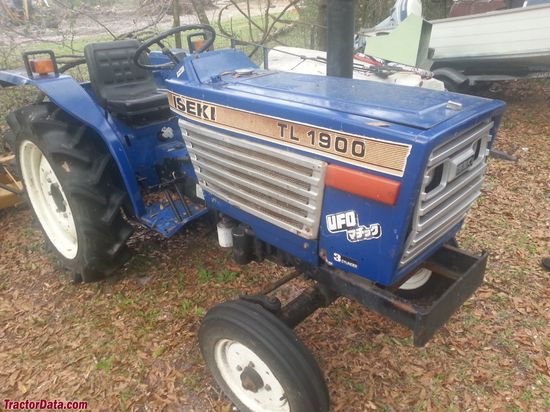

Iseki TL1900

Production: 1980 - 1985

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Variants
TL1900F:	4WD

Iseki TL1900 Power
Engine:	19 hp 14.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Open operator station.
Transmissions:	9-speed gear
18-speed creeper

Tractor hitch
Rear Type:	JIS0
JIS1

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	553@2600 731@2600 906@2600 1280@2600

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Isuzu E3AF1
diesel
3-cylinder
liquid-cooled
Displacement:	71.4 ci 1.2 L
Bore/Stroke:	2.992x3.386 inches 76 x 86 mm
Power:	19 hp 14.2 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Coolant capacity:	7.4 qts 7.0 L

Dimensions
Wheelbase:	58.3 inches 148 cm
Length:	106.3 inches 270 cm
2WD Width:	46.7 inches 118 cm
4WD Width:	48.8 inches 123 cm
Height:	76 inches 193 cm
2WD Weight:	1995 lbs 904 kg
4WD Weight:	2183 lbs 990 kg
Ground clearance:	11.4 inches 28 cm
2WD Front tread:	36.2/40.6 inches 91/103 cm
4WD Front tread:	39.4 inches 100 cm
Rear tread:	37/42.9 inches 93/108 cm
