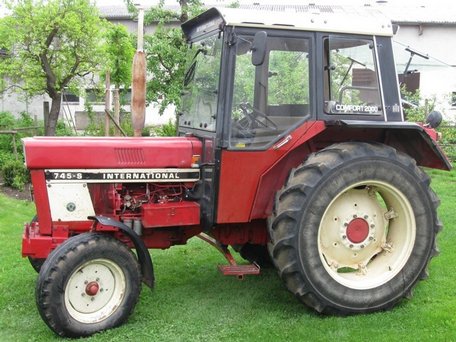

International Harvester 745

Production: 1980 - 1989

Production
Manufacturer:	International Harvester
Factory:	Neuss, Germany

Variants
745S:	ROPS
745XL:	Cab

International Harvester 745 Power
Engine:	72 hp 53.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Four-post ROPS. Cab with heat on 745 XL.
Transmissions:	16-speed two-speed power shift
8-speed gear
16-speed creeper

Hydraulics
Pump flow:	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type:	II
Control:	position and lower-link draft control.
Rear lift:	6945 lbs 3150 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540
540/1000*Optional

Electrical
Charging system:	alternator
Charging amps:	33
Battery volts:	12
Battery AH:	88

Engine Detail
International Harvester D-239
diesel
4-cylinder
liquid-cooled
Displacement:	238.65 ci 3.9 L
Bore/Stroke:	3.875x5.06 inches 98 x 129 mm
Power:	72 hp 53.7 kW
Rated RPM:	2300
Torque:	185.1 lb-ft 251.0 Nm
Torque RPM:	1600
Starter volts:	12
Oil capacity:	9.5 qts 9.0 L
Oil change:	200 h

Dimensions
2WD Wheelbase:	87.6 inches 222 cm
4WD Wheelbase:	86.2 inches 218 cm
2WD Length:	148.4 inches 376 cm
4WD Length:	150 inches 381 cm
Width:	80.3 inches 203 cm
Height (ROPS):	100 inches 254 cm
Height (cab):	105.1 inches 266 cm
2WD Ground clearance:	19.1 inches 48 cm
4WD Ground clearance:	15.9 inches 40 cm
2WD Front tread:	52.9 to 71.8 inches 134 to 182 cm
4WD Front tread:	64.8 to 71.4 inches 164 to 181 cm
Rear tread:	62.2 to 78 inches 157 to 198 cm
