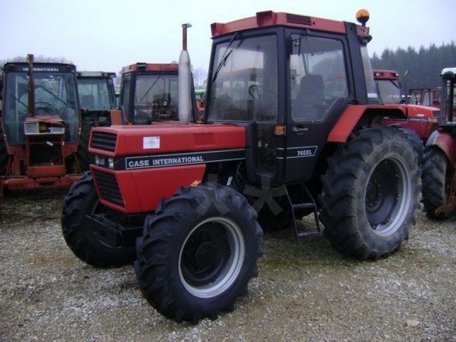

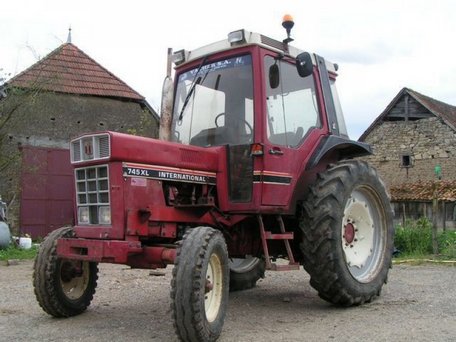

Case IH 745 XL
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Factory: | Neuss, Germany |
Case IH 745 XL Power | |
| Engine: | 72 hp 53.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard with heat. |
| Transmissions: | 16-speed |
| 8-speed | |
Hydraulics | |
| Pressure: | 2538 psi 175.0 bar |
| Valves: | up to 3 |
| Pump flow: | 8.7 gpm 32.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | lower link draft sensing |
| Rear lift: | 6947 lbs 3151 kg |
| 8835 lbs 4007 kg (optional) | |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
| 540/1000 (optional 4WD) | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 55 |
| Battery volts: | 12 |
Engine Detail | |
| International Harvester D-239 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 239 ci 3.9 L |
| Bore/Stroke: | 3.875x5.06 inches 98 x 129 mm |
| Power: | 72 hp 53.7 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2300 |
| Torque: | 185.1 lb-ft 251.0 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 9.5 qts 9.0 L |
| Oil change: | 200 h |
Dimensions | |
| 2WD Wheelbase: | 94.1 inches 239 cm |
| 4WD Wheelbase: | 92.5 inches 234 cm |
| 2WD Length: | 153.2 inches 389 cm |
| 4WD Length: | 156.3 inches 397 cm |
| Width: | 80.7 inches 204 cm |
| Height (cab): | 106.2 inches 269 cm |
| 102.1 inches 259 cm (low cab) | |
| 2WD Weight: | 7981 lbs 3620 kg |
| 4WD Weight: | 8664 lbs 3929 kg |
| 2WD Clearance (front axle): | 19.1 inches 48 cm |
| 4WD Clearance (front axle): | 15.9 inches 40 cm |
| Front tread: | 52.9 to 73.1 inches 134 to 185 cm (2WD) |
| Front tread: | 62.1 to 71.2 inches 157 to 180 cm (4WD) |
| Rear tread: | 58 to 77.7 inches 147 to 197 cm |
