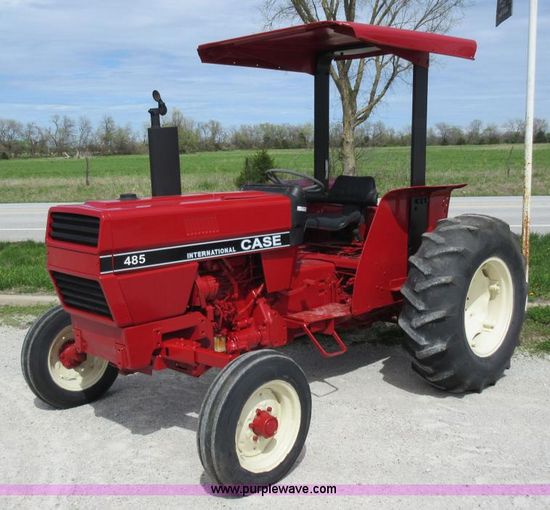

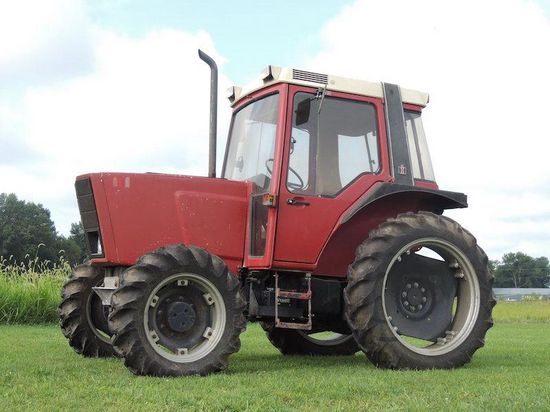

International Harvester 485
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Utility tractor |
| Factory: | Doncaster, England |
International Harvester 485 Power | |
| Engine (gross): | 53.6 hp 40.0 kW |
| Engine (net): | 52 hp 38.8 kW |
| PTO (claimed): | 46.5 hp 34.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Differential lock: | rear standard |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Economy cab standard. |
| Transmissions: | 8-speed synchromesh |
| 16-speed two-speed power shift | |
Hydraulics | |
| Pump flow: | 12.4 gpm 46.9 lpm |
Tractor hitch | |
| Control: | position and draft control |
| Rear lift: | 3704 lbs 1680 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540 |
485 Serial Numbers | |
| Location: | Serial number plate on right front of tractor frame, above the front axle. |
Engine Detail | |
| International Harvester D-179 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179 ci 2.9 L |
| Bore/Stroke: | 3.875x5.0625 inches 98 x 129 mm |
| Power (gross): | 53.6 hp 40.0 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2180 |
| Torque: | 140.4 lb-ft 190.4 Nm |
| Torque RPM: | 1400 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 84.65 inches 215 cm |
| Height: | 99.21 inches 251 cm |
| Weight: | 5622 lbs 2550 kg |
