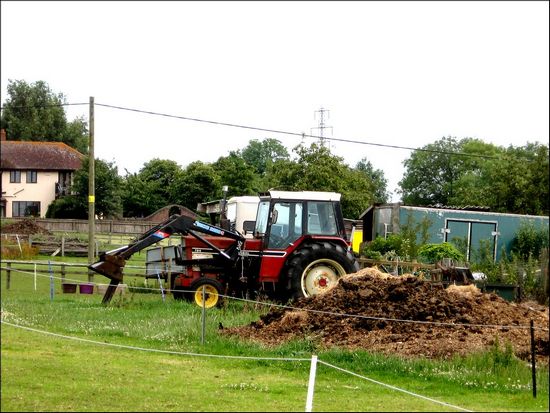

International Harvester 785
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Utility tractor |
| Factory: | Doncaster, England |
International Harvester 785 Power | |
| Engine (gross): | 80 hp 59.7 kW |
| Engine (net): | 77.4 hp 57.7 kW |
| PTO (claimed): | 68.3 hp 50.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | rear standard |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard. Economy and Deluxe cabs available. |
| Transmissions: | 8-speed synchromesh |
| 16-speed two-speed power shift | |
Hydraulics | |
| Pump flow: | 12.4 gpm 46.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 4400 lbs 1995 kg |
| 5250 lbs 2381 kg *With optional assistor ram | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
785 Serial Numbers | |
| Location: | Serial number plate on right front of tractor frame, above the front axle. |
Engine Detail | |
| International Harvester D246 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 246 ci 4.0 L |
| Bore/Stroke: | 3.94x5.06 inches 100 x 129 mm |
| Power (gross): | 80 hp 59.7 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2300 |
| Torque: | 263 lb-ft 356.6 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 88.19 inches 224 cm |
| Length: | 147.6 inches 374 cm |
| Height: | 104 inches 264 cm |
