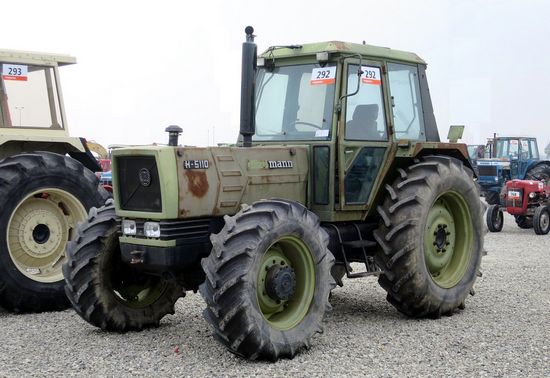

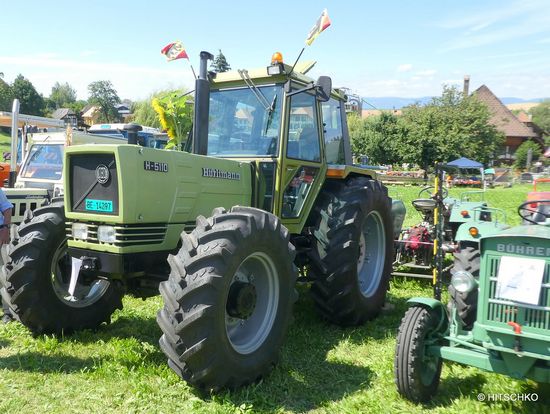

Hurlimann H-5110

Production: 1980 - 1986

Production
Manufacturer:	Hurlimann

Hurlimann H-5110 Power
Engine:	112.7 hp 84.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Available deluxe cab with air-conditioning.
Transmissions:	12-speed synchronized
24-speed
20-speed creeper

Tractor hitch
Rear Type:	II
Control:	Position control and lower-link draft sensing.
Rear lift:	8818 lbs 3999 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Engine Detail
SAME
turbocharged diesel
5-cylinder
liquid-cooled
Displacement:	347.9 ci 5.7 L
Bore/Stroke:	4.33x4.72 inches 110 x 120 mm
Power:	112.7 hp 84.0 kW
Compression:	16:1
Rated RPM:	2200
Torque:	323.8 lb-ft 439.1 Nm
Torque RPM:	1350
Coolant capacity:	19 qts 18.0 L

Dimensions
Wheelbase:	103.9 inches 263 cm
Length:	174.4 inches 442 cm
Width:	85.8 inches 217 cm *Minimum width.
Height (cab):	111.8 inches 283 cm
2WD Weight:	9259 lbs 4199 kg
4WD Weight:	10472 lbs 4750 kg
Ground clearance:	18.5 inches 46 cm
Front tread:	66.9 to 86.2 inches 169 to 218 cm
Rear tread:	68.5 to 84.7 inches 173 to 215 cm
