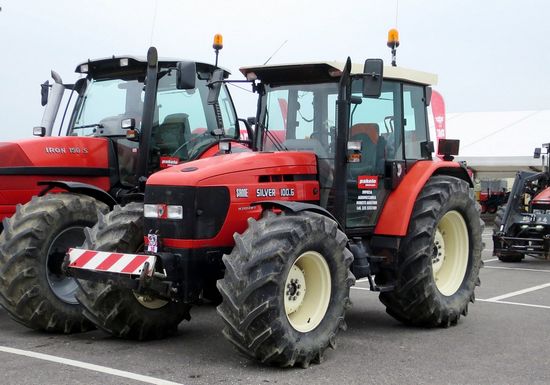

SAME Silver 100.6

Production: 1995 - 2004

Production
Manufacturer:	SAME

SAME Silver 100.6 Power
Engine:	100 hp 74.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic
Trailer brakes:	hydraulic*Optional
Cab:	Two-post ROPS. Cab optional with available air-conditioning.
Transmissions:	15-speed
20-speed
45-speed partial power shift
60-speed partial power shift

Hydraulics
Valves:	2 to 4
Pump flow:	10.8 gpm 40.9 lpm
12.7 gpm 48.1 lpm

Tractor hitch
Rear lift:	10362 lbs 4700 kg
Front Hitch:	optional
Front lift:	4409 lbs 1999 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	wet disc
Rear RPM:	540/540E/1000/1000E
Front PTO:	independent*Optional
Front RPM:	1000

Engine Detail
SAME 1000.6 A
diesel
6-cylinder
air-cooled
Displacement:	366.1 ci 6.0 L
Bore/Stroke:	4.13x4.54 inches 105 x 115 mm
Power:	100 hp 74.6 kW
Rated RPM:	2500
Torque:	270.7 lb-ft 367.1 Nm
Torque RPM:	1400
Starter type:	electric

Dimensions
Wheelbase:	103.7 inches 263 cm
Length:	175.4 inches 445 cm
Width:	78 inches 198 cm *Minimum width
ROPS Weight:	8818 lbs 3999 kg
Cab Weight:	10340 lbs 4690 kg
Ground clearance:	18.7 inches 47 cm
Front tread:	63 to 82.7 inches 160 to 210 cm
Rear tread:	63 to 82.7 inches 160 to 210 cm
