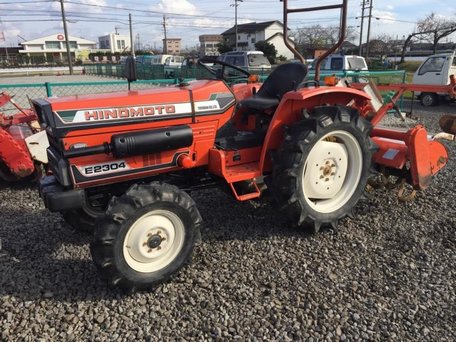

Hinomoto E2304

Production: 1982 - 1992

Production
Manufacturer:	Hinomoto
Type:	Compact Utility tractor
Factory:	Japan

Hinomoto E2304 Power
Engine:	23 hp 17.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	drum
Transmission:	12-speed

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540

Electrical
Ground:	negative
Charging amps:	35
Battery volts:	12

Engine Detail
Toyosha MS142
diesel
3-cylinder
liquid-cooled
Displacement:	86.96 ci 1.4 L
Bore/Stroke:	3.3228x3.543 inches 84 x 90 mm
Power:	23 hp 17.2 kW
Compression:	23:1
Rated RPM:	2500
Starter volts:	12
Oil capacity:	3.7 qts 3.5 L
Coolant capacity:	4.5 qts 4.3 L

Transmission
Gears:	12 forward and 4 reverse
Oil capacity:	23.3 qts 22.1 L

Dimensions
Length:	100 inches 254 cm
Width:	48 inches 121 cm
Height:	74 inches 187 cm
Weight:	2,253 lbs 1021 kg
Ground clearance:	12.2 inches 30 cm
