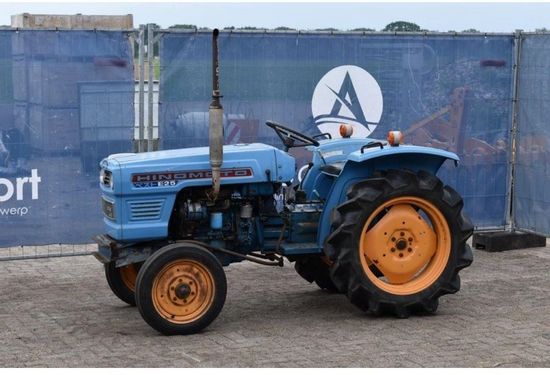

Hinomoto E25

Production: 1977 - 1979
Type: Compact Utility Tractors

Contents:

Production

Manufacturer:Hinomoto
Type:Compact Utility tractor
Factory:Japan

Variants

E25D:4WD

Hinomoto E25 Power

Engine:25 hp 18.6 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Cab:Open operator station.
Transmission:12-speed

Power Take-off (PTO)

Rear RPM:540 (1.375)
Engine RPM:580@2500 817@2500 1420@2500

Electrical

Ground:negative
Battery volts:12

Engine Detail

Toyosha
diesel
2-cylinder
liquid-cooled
Displacement:82.1 ci 1.3 L
Bore/Stroke:3.74x3.74 inches 95 x 95 mm
Power:25 hp 18.6 kW
Rated RPM:2500
Starter volts:12

Transmission

Gears:12 forward and 3 reverse

Dimensions

Wheelbase:59.1 inches 150 cm
Length:101 inches 256 cm
Width:48.4 inches 122 cm
Height (steering wheel):52.4 inches 133 cm
Height (exhaust):76 inches 193 cm
2WD Weight:1896 lbs 860 kg
Ground clearance:13.4 inches 34 cm
