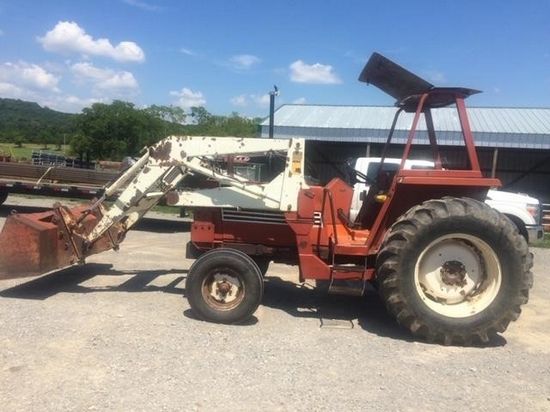

Hesston 680
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Hesston (a part of Fiat) |
| Type: | Utility tractor |
| Factory: | Italy |
| Original price: | $21,550 (1984) |
Variants | |
| 680: | 2WD |
| 680DT: | 4WD |
Hesston 680 Power | |
| PTO (claimed): | 62 hp 46.2 kW |
| Drawbar (tested): | 53.33 hp 39.8 kW |
| PTO (tested): | 62.47 hp 46.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (680DT) | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic disc |
| Cab: | ROPS standard, Supercomfort cab optional with air conditioning. Optional radio, cassette, and CB radio. |
| Transmissions: | 8-speed partially synchronized |
| 16-speed | |
| 8-speed mechanical shuttle | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2702 psi 186.3 bar |
| Valves: | 2 |
| Pump flow: | 11 gpm 41.6 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 4,410 lbs 2000 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 45 |
| 55 (with cab and A/C) | |
| Battery volts: | 12 |
Engine Detail | |
| Fiat 8045 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 211 ci 3.5 L |
| Bore/Stroke: | 3.94x4.33 inches 100 x 110 mm |
| Fuel system: | direct injection |
| Compression: | 17:1 |
| Rated RPM: | 2500 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 89 inches 226 cm |
| Length: | 135 inches 342 cm (2WD) |
| 140 inches 355 cm (4WD) | |
| Operating weight: | 5,407 lbs 2452 kg (2WD) |
| 6,029 lbs 2734 kg (4WD) | |
