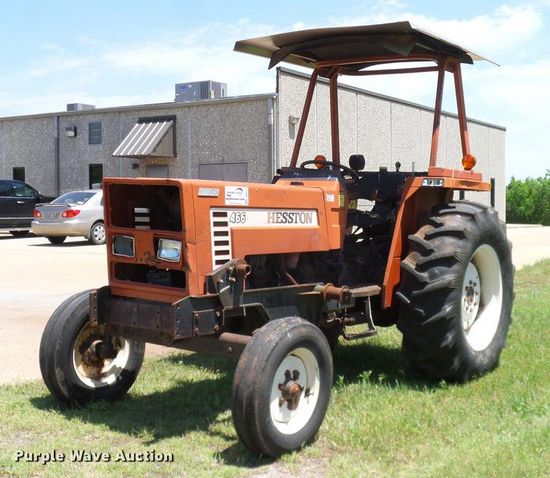

Fiat-Hesston 466

Production: 1983 - 1984

Production
Distributor:	Hesston
Manufacturer:	Fiat
Type:	Utility tractor
Factory:	Modena, Italy
Original price:	$16,400 (1984 )

Variants
466DT:	4WD

Hesston 466 Power
Drawbar (claimed):	40 hp 29.8 kW
PTO (claimed):	45 hp 33.6 kW
Drawbar (tested):	38.44 hp 28.7 kW
PTO (tested):	45.13 hp 33.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	differential mechanical wet disc
Cab:	Four-post ROPS standard. Optional canopy.
Transmissions:	12-speed synchronized
12-speed
20-speed

Hydraulics
Type:	open center
Pressure:	2700 psi 186.2 bar
Valves:	0 to 2
Pump flow:	11 gpm 41.6 lpm

Tractor hitch
Rear Type:	I/II

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	33

Engine Detail
Fiat 8035.02
diesel
3-cylinder
liquid-cooled
Displacement:	158 ci 2.6 L
Bore/Stroke:	3.94x4.33 inches 100 x 110 mm
Compression:	17:1
Rated RPM:	2600
Starter volts:	12

Dimensions
2WD Wheelbase:	85.6 inches 217 cm
4WD Wheelbase:	83.4 inches 211 cm
2WD Length:	130 inches 330 cm
4WD Length:	133 inches 337 cm
2WD Clearance (front axle):	20 inches 50 cm
4WD Clearance (front axle):	17 inches 43 cm
