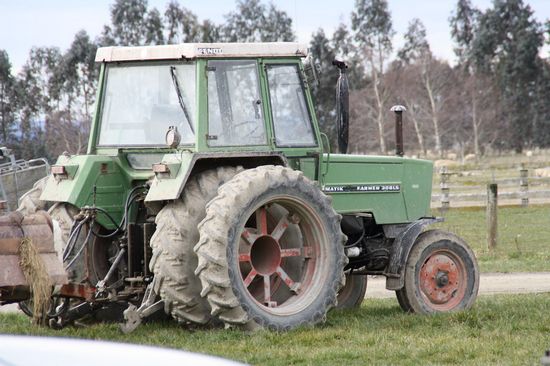

Fendt Farmer 308LS

Production: 1980 - 1990

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Fendt Farmer 308LS Power
Engine:	78 hp 58.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with heat. Air-conditioning optional.
Transmissions:	15-speed synchromesh
21-speed

Hydraulics
Type:	open center
Pump flow:	10.6 gpm 40.1 lpm
Steering flow:	9.3 gpm 35.2 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	8158 lbs 3700 kg
Front Hitch:	II*Optional
Front lift:	5534 lbs 2510 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540/750
540/750/1000
Front PTO:	independent
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	33
55*Optional
Battery volts:	12
Battery AH:	110

Engine Detail
MWM
diesel
4-cylinder
liquid-cooled
Displacement:	253.5 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	78 hp 58.2 kW
Rated RPM:	2350
Torque:	200.6 lb-ft 272.0 Nm
Torque RPM:	1500
Starter volts:	12
