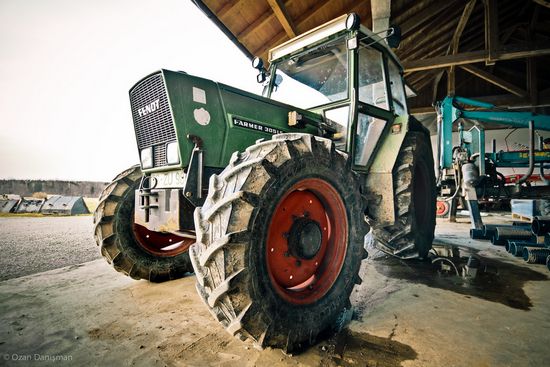

Fendt Farmer 305LS

Production: 1980 - 1993

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Fendt Farmer 305LS Power
Engine:	62 hp 46.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with heat. Air-conditioning optional.
Transmissions:	15-speed synchromesh
21-speed

Hydraulics
Type:	open center
Pump flow:	9.8 gpm 37.1 lpm
Steering flow:	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	6107 lbs 2770 kg
Front Hitch:	II*Optional
Front lift:	5534 lbs 2510 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540/750
540/750/1000
Front PTO:	independent
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	33
55*Optional
Battery volts:	12
Battery AH:	110

Engine Detail
MWM
diesel
4-cylinder
liquid-cooled
Displacement:	229.92 ci 3.8 L
Bore/Stroke:	3.937x4.72 inches 100 x 120 mm
Power:	62 hp 46.2 kW
Rated RPM:	2175
Torque:	186.6 lb-ft 253.0 Nm
Torque RPM:	1500
Starter volts:	12

Dimensions
2WD Wheelbase:	91.3 inches 231 cm
4WD Wheelbase:	77.6 inches 197 cm
2WD Length:	153.7 inches 390 cm
4WD Length:	154.3 inches 391 cm
Width:	77.6 inches 197 cm
Height (cab):	102 inches 259 cm
2WD Ground clearance:	18.6 inches 47 cm
4WD Ground clearance:	16.9 inches 42 cm
