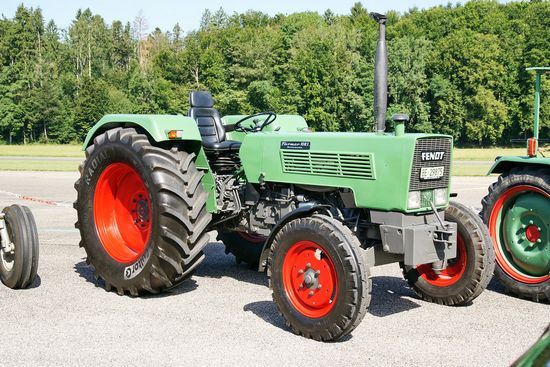

Fendt Farmer 108S

Production: 1974 - 1979

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Variants

basic

deluxe

Fendt Farmer 108S Power
Engine:	73.8 hp 55.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Cab standard.
Transmissions:	13-speed synchronized
16-speed creeper

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	28
Charging volts:	14
Battery volts:	12
Battery AH:	110

Engine Detail
MWM D226-4
diesel
4-cylinder
liquid-cooled
Displacement:	253.5 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	73.8 hp 55.0 kW
Rated RPM:	2300
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	87.6 inches 222 cm
4WD Wheelbase:	88.4 inches 224 cm
Length:	153.5 inches 389 cm
Width:	79.1 inches 200 cm
Height:	97.6 inches 247 cm
2WD Weight:	6967 lbs 3160 kg
4WD Weight:	7804 lbs 3539 kg
