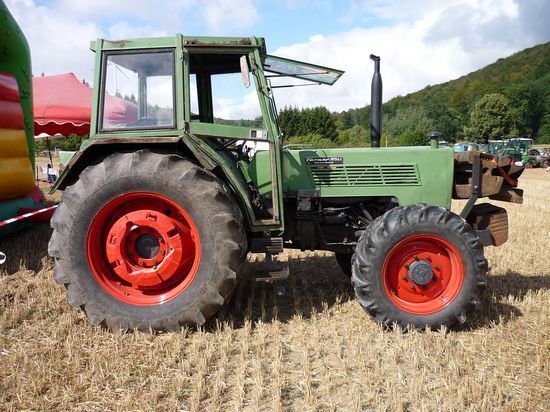

Fendt Farmer 105LS

Production: 1977 - 1985

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Variants

basic

deluxe

Fendt Farmer 105LS Power
Engine:	59 hp 44.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Cab standard with available heater.
Transmissions:	13-speed synchronized
16-speed creeper

Hydraulics
Type:	open center
Pressure:	2538 psi 175.0 bar
Pump flow:	11.6 gpm 43.9 lpm

Tractor hitch
Rear lift:	6107 lbs 2770 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	28
Charging volts:	14
Battery volts:	12
Battery AH:	110

Engine Detail
MWM D226-4
diesel
4-cylinder
liquid-cooled
Displacement:	253.5 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	59 hp 44.0 kW
Rated RPM:	2175
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	87.6 inches 222 cm
4WD Wheelbase:	88.4 inches 224 cm
Length:	150.4 inches 382 cm
Width:	74.4 inches 188 cm
Height:	96.5 inches 245 cm
