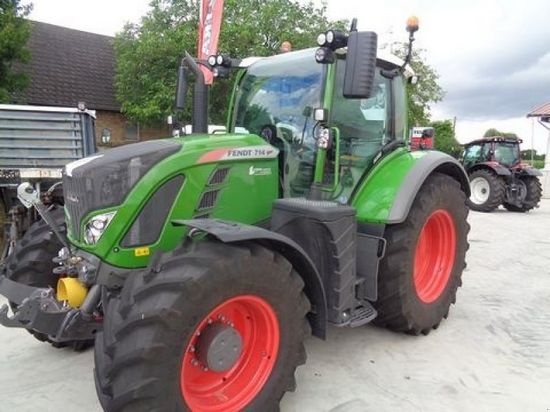

Fendt 714 Vario

Production: 2006 - 2022

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor
Factory:	Marktoberdoft, Germany

Fendt 714 Vario Power
Engine (gross):	147 hp 109.6 kW
Engine (net):	130 hp 96.9 kW
Engine (max):	151 hp 112.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	wet discs
Cab:	Cab standard with air-conditioning.
Transmission:	continuously variable transmission (IVT)

Hydraulics
Type:	load sensing
Pressure:	2,900 psi 200.0 bar
Total flow:	29.1 gpm 110.1 lpm
40.68 gpm 154.0 lpm (optional)

Tractor hitch
Rear Type:	III/II
Rear lift:	12,233 lbs 5548 kg
Front lift:	5,520 lbs 2503 kg

Power Take-off (PTO)
Rear RPM:	540/540E/1000
Front RPM:	540 (optional)
1000 (optional)

Electrical
Charging system:	alternator
Charging amps:	200
Battery volts:	12
Battery AH:	170

Engine Detail
Deutz TCD 2012 L06 4V
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	369.6 ci 6.1 L
Bore/Stroke:	3.976x4.961 inches 101 x 126 mm
Emissions:	Tier IIIa
Emission control:	egr
Rated Power (ECE R24):	130 hp 96.9 kW
Rated Power (EC 97/98):	147 hp 109.6 kW
Maximum Power (ECE R24):	145 hp 108.1 kW
Maximum Power (EC 97/68):	151 hp 112.6 kW
Rated RPM:	2100
Torque:	472 lb-ft 640.0 Nm
Torque RPM:	1450
Starter power:	4.1 hp 3.1 kW
Oil change:	500 h

Transmission
Transmission:	Fendt Vario
Type:	continuously variable transmission (IVT)
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	106.3 inches 270 cm
Length:	183.8 inches 466 cm
Width:	99.21 inches 251 cm
Height:	118.1 inches 299 cm
Weight:	14,560 lbs 6604 kg
Max weight:	25,350 lbs 11498 kg
Ground clearance:	21.7 inches 55 cm
Front tread:	76.4 inches 194 cm
Rear tread:	75.6 inches 192 cm
